Fast Clearance High precision fast speed 6040 1390 300W 500W 750W 1000W fiber laser thin metal sheet laser cutting machine

Fast Clearance High precision fast speed 6040 1390 300W 500W 750W 1000W fiber laser thin metal sheet laser cutting machine Rating: 4.3 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Fast Clearance High precision fast speed 6040 1390 300W 500W 750W 1000W fiber laser thin metal sheet laser cutting machine. Price at this time US $29500.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Jinan AccTek Machinery Co.,Ltd Trusted Seller Store!

Wonderful product could enhance the quality of your life. Qualified to be bought. Inexpensive cost and also totally free delivery. Allow's buy before costs increase.

Just as you will certainly get a fortune, this product is able to offer a vehicle that has to be very intriguing for you. The product magazine you get is absolutely supply a recommendation for those of you who desire to find the goods you desire.

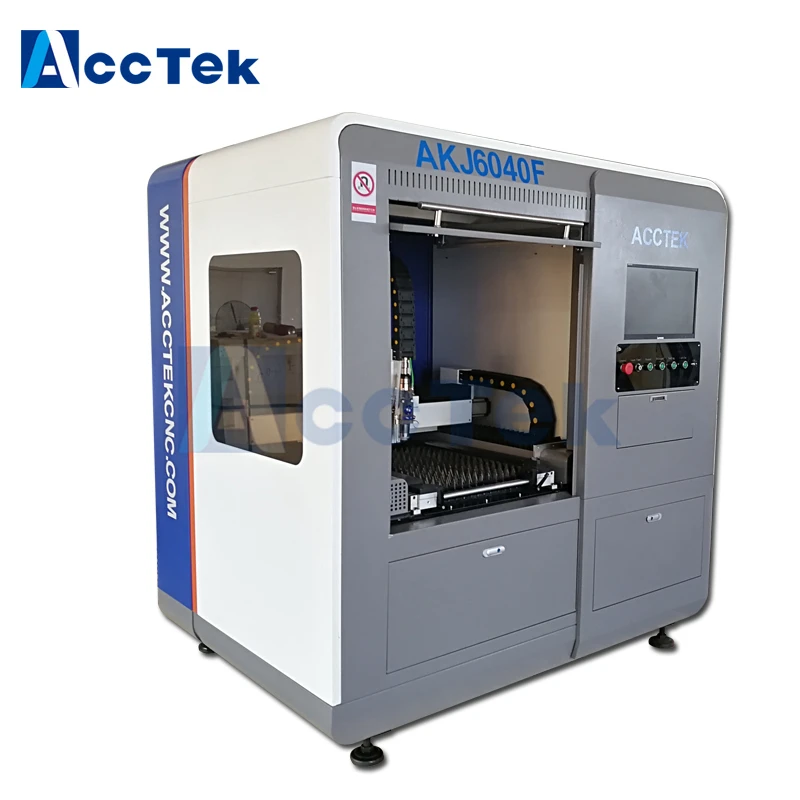

High precision fast speed 6040 1390 300W 500W 750W 1000W fiber laser thin metal sheet laser cutting machine

Product Application

Fiber thin metal sheet laser cutting machine adopts most sophisticated fiber laser, combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision and fast speed, linear guide drive. Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity. It is mainly for cutting sheet metal below 6mm in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials precision cutting. It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.


Advantage of thin metal sheet laser cutting machine:

1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.

Configurations & technical parameter

Working area

600*370mm

Control System

Cypcut

Guide rail

Taiwan HIWIN linear guide rail

Transmission

Precision Taiwan TBI ball screw

Electronic Components

French Schneider

Motor

Japanese Panasonic servo motor

Max Speed

20m/min

Repeat positioning accuracy

±0.01mm/m

Maximum Acceleration

0.5G

Min line width

0.1mm

Power Requirements

220V/380V, 50/60Hz

Cooling Way

Water Cooling

Machine Operating temperature

0 ℃ -40 ℃

Graphic Format Supported

AI, BMP, DST, DXF, DXP, PLT

Dimensions

1.46*1.85*2.04m

Weight

800KG

Some detailed components:

1. Cypcut control system with computer, including control panel.

2. Good quality WSX, Raytools or Lasermech laser head.

3. PC and electronics, including Panosonic drivers.

4. Raycus or IPG fiber laser.

Some samples:

FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory, welcome to visit us. : )

Q: How long is your delivery time?

A: Generally it is 20-35 working days after receive the deposit.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos or the testing video.
After you agree, please finish the balance. Finally.we arrange the delivery.
