Great New Nema 23 Wantai Stepper Motor 425oz-in,3.0A,4 Axis CNC Engraver, Miller, Laser Machine 3D Reprap Printer of wantaimotor

Great New Nema 23 Wantai Stepper Motor 425oz-in,3.0A,4 Axis CNC Engraver, Miller, Laser Machine 3D Reprap Printer of wantaimotor Rating: 4.5 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Great New Nema 23 Wantai Stepper Motor 425oz-in,3.0A,4 Axis CNC Engraver, Miller, Laser Machine 3D Reprap Printer of wantaimotor. Get Discount Now! Only US $357.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $380.00 or you can Check price now. Dont waste your time. Buy Now only in wantai motor's store Trusted Seller Store!

You could read detail info regarding this goods listed below. You could review detail details concerning this Special Great New Nema 23 Wantai Stepper Motor 425oz-in,3.0A,4 Axis CNC Engraver, Miller, Laser Machine 3D Reprap Printer of wantaimotor item listed below. Any kind of cost as well as schedule info displayed on this website at the time of acquisition will use to the acquisition of this product.

Best

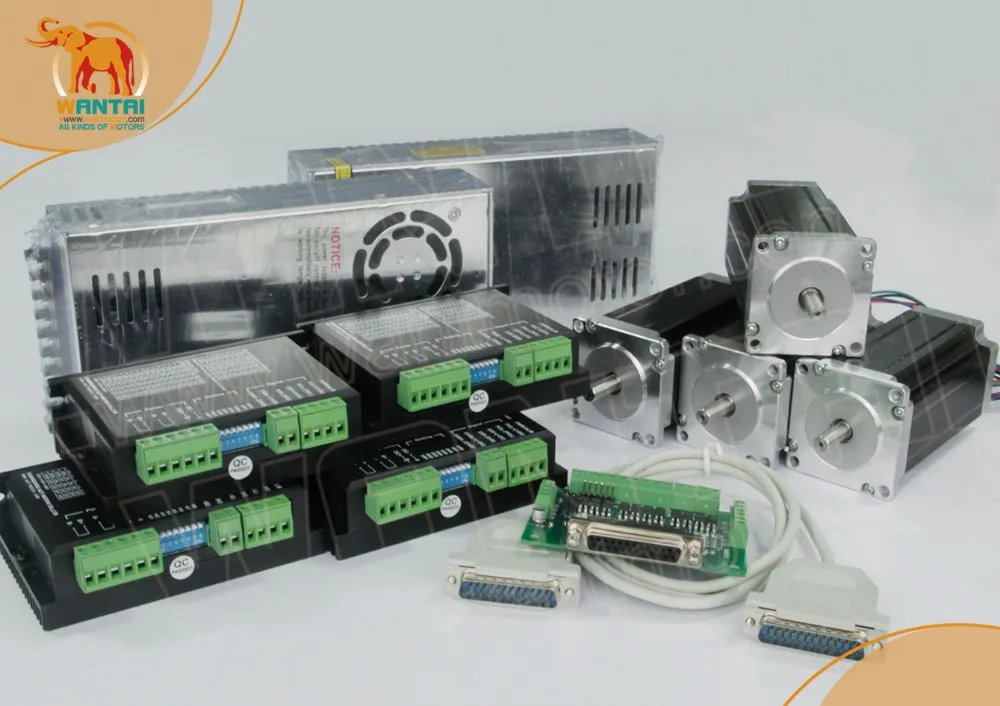

This item includes:

4 PCS Nema 23 Stepper Motor dual shafts with 425oz-in holding torque,

4 PCS Stepper Driver with 4.2A DQ542MA,

2 PC Power Supply for 350W,36VDC,

1 PC DB25 Breakout Board & 1 Cable

1, Stepper Motor

Technical Specifications

Part No.: WT57STH115-3004B

Frame Size: NEMA23

Step Angle:1.8 degree

Voltage: 6.3VDC

Current: 3 A/phase

Resistance:2.1Ohm/phase

Inductance:9mH/phase

Holding torque:30Kg-cm 425oz-in

Rotor inertia:810 g-cm2

Detent torque: 0.89 kg-cm

Number of wire leads: 4

Weight: 1.55KG

Length: 115mm

2, Stepper Motor Driver with 4.2A Current, 128 Microstep

DQ542MA is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 18VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when DQ542MA run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, Computer embroider machine, packing machines and so on.

3, Power Supply-350W,36VDC,9.5A,

4, Breakout Board

  • Built in DB25 male connector.
  • DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
  • DB25 Input Pin: P10,P11,P12,P13,P15.
  • DB25 GND Pin: P18-P25.
  • Power supply: +5V DC.
  • Built in C-class Optical-coupler.
  • High quality with Surface-mount Tech.

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
Great New Nema 23 Wantai Stepper Motor 425oz-in,3.0A,4 Axis CNC Engraver, Miller, Laser Machine 3D Reprap Printer of wantaimotor
