Big Promotion 1325 1330 1530 1mm 2mm 3mm steel laser cutting machine,300w laser cutting machine

Big Promotion 1325 1330 1530 1mm 2mm 3mm steel laser cutting machine,300w laser cutting machine Rating: 4.7 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Promotion 1325 1330 1530 1mm 2mm 3mm steel laser cutting machine,300w laser cutting machine. Price at this time US $25200.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Jinan AccTek Machinery Co.,Ltd Trusted Seller Store!
Product Description

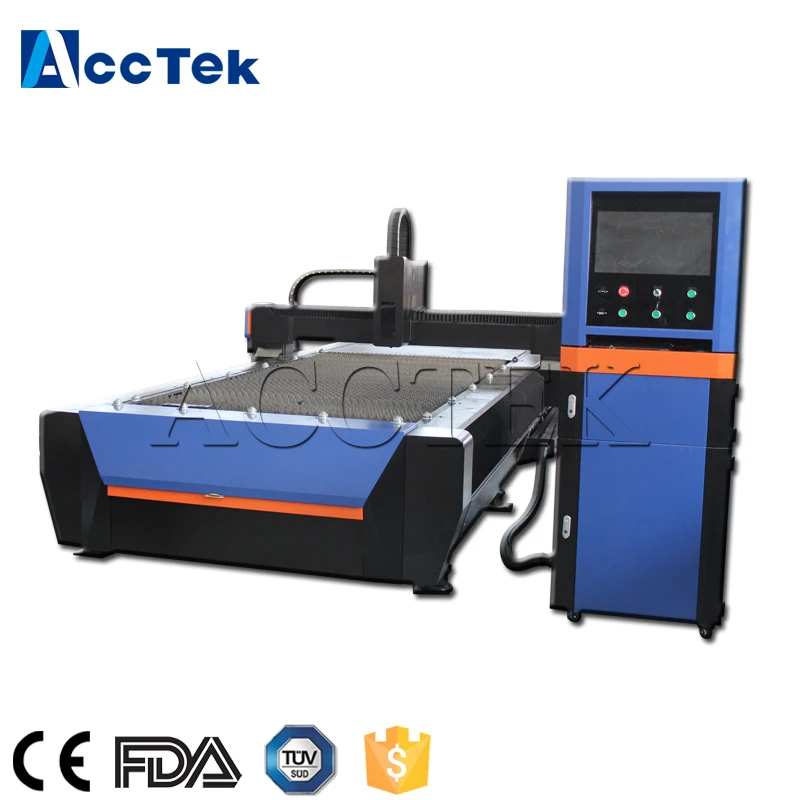

1325 1330 1530 1mm 2mm 3mm steel laser cutting machine,300w laser cutting machine

300w laser cutting machine features and advantages:

1. Moved crossbeam with imported high precision ball screw and rail guide transmission makes the stable driving and high precision work.

2. Machine frame, crossbeam and worktable adopt integral welding, in accordance with the standard large machine, to stress annealing after rough machining, and then vibration aging treatment, can completely eliminate the welding stress and processing.

Can also keep high strength, high precision, and also keep the 20 years of normal use of deformation

3. X and Y axis equip with Japan servo motor, high precision, high speed, large torque, large inertiafor a steady and durable work.

4. Use MPC6595 based on Windows operating system can perfect match the Laser cut 6.1, collect he function of read file, simple design, output, and processing control, a set of software which can complete the layout to the machining process, integrated with laser

cutting control special function module which is powerful with a good man-machine interface and easy to operate.

Parameters

300w laser cutting machine technical parameters

Working size: (L*W)3000mm×1300mm

Laser power: 300W 500W Raycus

X,Y,Z axis range: 3025mm/1325mm/100mm

The thickness of the material: 0.1-6mm(Depending on the material)

Maximum cutting thickness: 6mm

Position accuracy: 0.03mm

Maximum moving speed: 20m/min

Net weight: 1500kg

Operating temperature: 0℃-40℃

Control system: Au3tech;Cypcut

Workbench maximum load: 300kg

Drive type of X, Y axis: imported servo drive( Delta,Panasonic, Japan)

Moving mode: Gear and rack transmission

Machine size(L*W*H): 4200*2150*1500mm

Detailed photos

Machine details:

1. Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.

2. Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize in/out cutting file and file sorting out.User can decide to manually do above work, or let controller do it automatically.

3. Support conventional picture edit functions

4. Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap

5. Unique function of Preview of cutting work flow.

6. Support segmental pierce, Progressive pierce, Pre-pierce, support separately setting laser watt, frequency, laser type,air type, pressure, auto cutting height during pierce and cutting.

7. Support to set separate lead in/out speed according to adjustment of laser power.

8. Big storage, allowing user to save all cutting parameters to use it again on same material.

9. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting.

It can go to any point to start there after stop or pause.

Samples

Some samples shows:

Company Information

Our Services

After-sale service:

1).24 hours technical support by Email or Calling.

(Skype: cnc.help)

2). English manual and CD video for machine using and maintaining.

3). Hardware: 2 years on all parts (without person damaged).

Software: Whole life on update for free.

Maintenance and technological support: Whole life.

4).Engineers available to service machinery overseas.

FAQ

How to choose a good cnc fiber laser metal cutting machine?

1. Machine quality.

If you plan to choose the cheapest 300w laser cutting machine, the quality cant be guaranteed. The quality is the most important factors should be considered first before choosing a fiber laser cutting machine.
2. Future more, after-sales service is very important too.

Good after-sales service represent the image of a company. After you using the fiber metal laser cutting machines and meetting any problem, a good after-sales can solve it effectively and quickly.
3. Technical support.

Cos of different time zone, the communication with the seller is a big problem. So the effectively contact information and serve is very useful.

Our company can provide 24th service, we could also go to your country to solve problem if necessary.
4. Last but not the least is the companys ability.

In order to ensure the company image, a good reputation company usually can produce good quality machine. Our company specialized in CNC laser machine since 2005,

the professional engineer teams, the advanced equipment and the good service have earned us good reputation in world market.

If you want to make sure whether this cnc fiber laser metal cutting machine suitable for your material, please tell me:
1.Whats the materials do you want to cut?
2.What’s the max size of your material?(Length *width* thickness)
Once you tell me this information of your material, then Ill recommend you the most suitable machine and the best price for you. And we can also customize one for you or send you a solution.

This is the first time I use this kind of cnc fiber laser metal cutting machine. Is it easy to operate?
Yeah. Don’t worry about this.

1. English instruction book are sent to you free together with the metal sheet fiber laser cutting machine.
2. Free training course in our factory. Engineers are also available to serve overseas if necessary.
3. 24 hours technical support by calling, video and email.

4. Free technican support for lifetime.

We are the manufacturer ,so we can accept OEM design ,any requirement ,just feel free to contact me ,you will get professional service .

Beck Guo

Email: export at acctekcnc.com

Skype: acctek.beck

Mob, whatsapp: +86-15098848753

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
