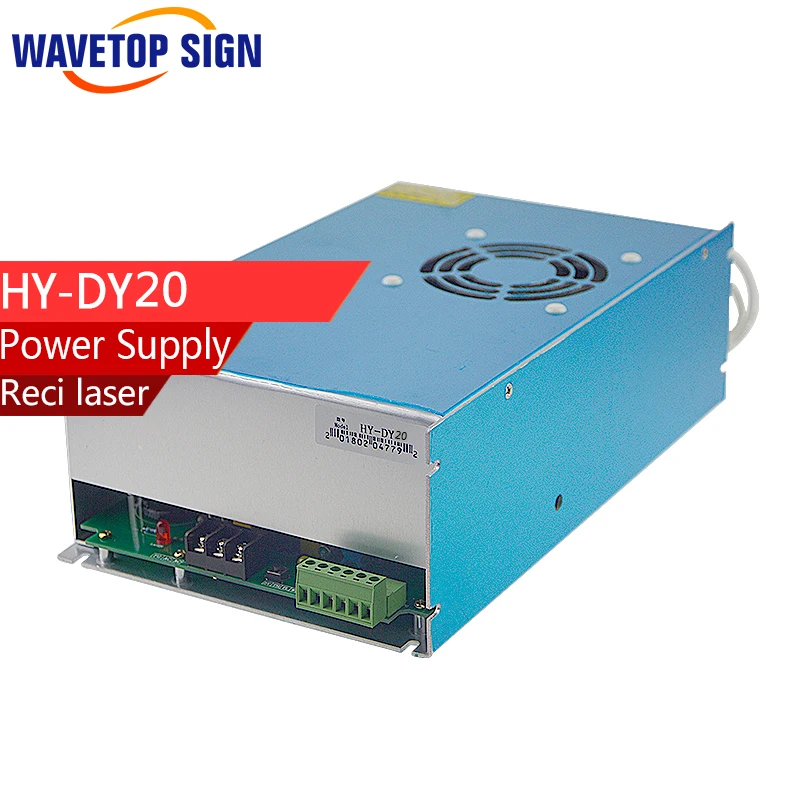

Great Gift DY20 Co2 Laser Power Supply For RECI W6 W8 S6 S8 Co2 Laser Tube Engraving Cutting Machine

Great Gift DY20 Co2 Laser Power Supply For RECI W6 W8 S6 S8 Co2 Laser Tube Engraving Cutting Machine lamachine Rating: 4.9 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Great Gift DY20 Co2 Laser Power Supply For RECI W6 W8 S6 S8 Co2 Laser Tube Engraving Cutting Machine. Get Discount Now! Only US $160.93/piece at this time. Hurry buy Now before back to normal price! Normal price US $171.20 or you can Check price now. Dont waste your time. Buy Now only in wavetopsign Store Trusted Seller Store!

These days this Special Great Gift DY20 Co2 Laser Power Supply For RECI W6 W8 S6 S8 Co2 Laser Tube Engraving Cutting Machine product is really affordable for practically every person and also its a very great buy for the cash.

Input Voltage: AC220V(Need AC110V ,please specify ,when order)

AC frequency: 47 - 440HZ

Max Input power1000W

Max Input current: 10A

Max output voltage: DC50KV

Max output current: DC35mA

Efficiency: >/=90%(Full load)

MTBF: >/=10000 Hours

Response speed: ≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)

Withstand Voltage: Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.

Environment: Operating temperature: (-10-40)degree Celsius,Relative humidity: ≤90%

Cooling: Forced air cooling (fan cooling)

Operating instructions

1.Laser Tube connection: (Refer to Power supply and laser Devices connection Diagram) High voltage terminal of HY-DY20 power supply should be connected to the positive pole of CO2 laser device. Current circuit of the power supply shall be connected to negative pole (laser output terminal) of laser device, through an ampere meter or directly.

2.Connection of control signal( Refer to Power supply and control boards connection Diagram) The control signal shall be reliably connected to control terminal of the power supply HY-DY20,after connecting the DAC output signal and TTL signal of external computer with the power supply, the laser device shall work as expected. If the laser lamp can not work properly, should check the control signal whether correct or not(include check the voltage specification and logic),if use PWM control as power control,make sure f≥20KHz,Amplitude (peak value) ≤5V,Check and protection switch WP connection is correct at same time.

3.Voltage of power input: HY-DY20s power input of the power supply shall be 220VAC/50Hz. If 110VAC required please specify when placing order.

4. Others: A group of protection switches are also reserved for detection of water switch, fan switch,open-enclosure protection and so on.

1. This power supply is specially designed for 150W special laser tube. the power supply makes laser tube output larger and more stable.2. Quick response speed and effect,high performance,large cutting power,it also can prolong laser tube service life.3. Easy control: the start and stop of laser can be easily controlled by TTL level.4. The power supply has output open circuit protection.5. The power supply has TTL signal indication, water through signal indication and laser output indication.6. This power supply has the Buttonto test output laser manually.7. Application: Sculpture and cut acrylic,fabric,double color sheet and rubber etc
