Product Introduction:

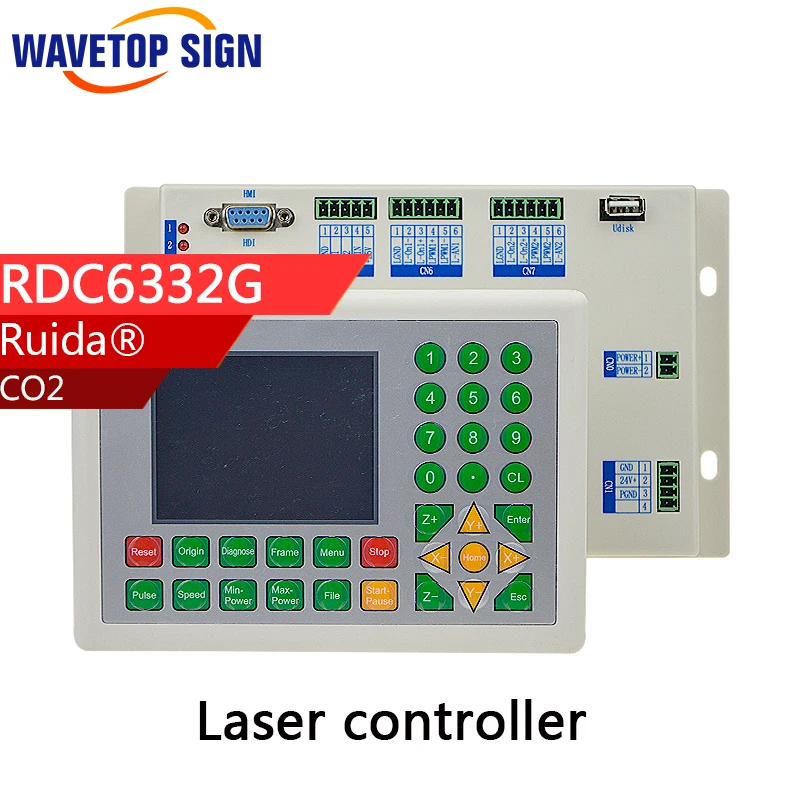

RDC6332G system is the latest laser engraving & cutting control system developed by Ruida Technology, this control system has better stable hardware with antistatic, resistance to high pressure. The human-machine operation system based on LINUX, with better operation interface and power functions, excellent motion control functions, high-capacity file memory, with strong compatible 2-way independent adjustable analog/digital laser power control interface, strong compatible U disk drive program, multiple ways gerneral/dedicated IO control. Integrated dedicated time system supporting hardware encryption algorithm.

setting password:rd8888

lcd password:666888

Technical Parameters:

1.Digital laser control signals:

(1) Differential output, TTL level, 20 mA,drive capability
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 4.5 V

2.Analog laser control signal:0 ~ 5V tracing adjustable automatically

3.Motor control signal:differential output, TTL level, drive capability 20 mA

4.Motor control pulse frequency:Max.500 KHZ

5.USB:Max. transmission rate is 12M bps ; the longest distance is 5 meters.

6.Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse

7.Output:4-channel, photoelectric isolated OC gate output; max.drive capability is 500mA

8.Input:4-channel, photoelectric isolated input, TTL level

Functions:

• The controller has better resistance to high voltage and antistatic ability

• One-way 24V power supply(compatible with 36V, but not recommended)

• Support all brands and capacities of U disks, quick and strong compatible copy ability

• 256M large-capacity file nonvolatile storage onboard, no bottlenecks limit for file size

• Capable of self-checking defective track, can format memory, good in fault tolerance

• 10/100M Ethernet + USB2.0 communication mode for optional

• Multi-way general large-current IO, convenient for function extension

• Display processing path, file preview

• Two-way independent digital/analog interface, software can be adjusted respectively, convenient for double laser heads control; Dedicated RF laser control interface

• Soft/hard limit coordinates protection for optional

• Support linear/circular arc/B-spline interpolation function

• Time system on board ( year-month-day, more reliable hardware encryption algorithm)

• Online update mainboard program, convenient for maintenance and functions customization.

• Auto-feeding, up and down, rotating engraving,left-right pushing plate, etc.

  Support feeding line by line, slope engraving function

• Support Power-off restart for engraving, work time preview (high accuracy to millisecond, the preview time is exact to the actual working time, the other vendor cannot realize)

• Support machines backlash compensation function

• Increase Z axes linkage function

• System Power-on resetting or not resetting for optional

• Support multiple positioning points logic

• All manufacturer/user parameters can be backup and restored
