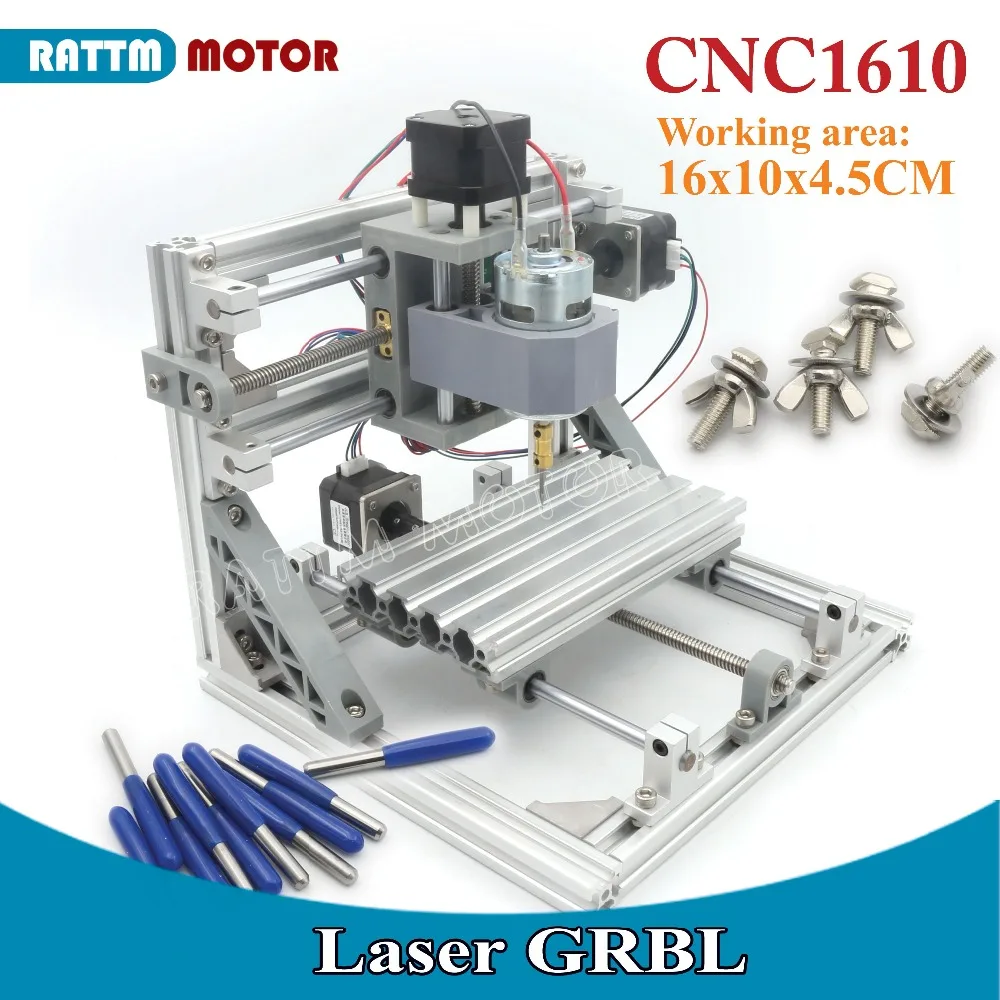

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Super Clearance EU Delivery! 1610 GRBL control Laser mini CNC machine working area 160x100x45mm 3 Axis Pcb Milling machine,Wood Router, v2.4. Price at this time US $159.80/piece. Check price now to get discount! Dont waste your time. Buy Now only in Changzhou Rattm Motor Co., Ltd. Trusted Seller Store!
Other countries order still send from China!! Bescause our products are very popular, will not have enough stock, but never mind, usually just wait 15-25days can be send,so i hope buyers to contact me before purchasing.Thanks!
Package include:
1set GBRL 1610 CNC Laser machine kit (without laser)2 x 20°0.1mm drill bitsSet of allen wrench Notice: The machine for a full set of spare parts, shall be installed by the buyers,the package include the CD , with detailed user manual and free software,buyers don‘t need to worry about machineAssembly.We suggest cnc-based buyers to buy,This machine is not industrial grade level.
Introduction:
Body used profiles and plastic, small size, light weight, USB interface, GRBL control system, learning, entry preferred. Can use carving knife, but also can use laser engraving.
Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.
Specification:
Profile Dimensions: 260x240x220mm
Travel (engraving range): 160x100x45mm
Table size: 180x100mm
Screw: Professional T8 screw, lead 4mm, double copper nuts eliminate the poor back
Stepper motor: 42 stepper motor
Voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m
Spindle: 775 spindle motor (12-36V) 24V: 7000r / min, 36V: 9000r / min
Power: 24V 5A power adapter (input voltage 110-240V), simple and convenient
Gray Part Material: Plastic
Control software: GrblControl
Design software: All CAM (computer aided manufacturing) software can be
System requirements: windows XP SP3, win7, win8, win10. (32/64 can be). Linux
Interface: USB
Lead screw with T8 trapezoidal lead. Double-headed lead 4mm, double nut spring back to eliminate poor
I. GRBL 0.9J,USB port cnc engraving machine control board, 3 axis control
Specification:
Connection: USB (USB-CH340)
Software: GRBL controller, UniversalGcodeSender
Input voltage: 12-36V
Master chip: atmel 328P (arduino nano)
Stepper motor driver: A4988
Spindle drive chip: MOSFET (recommendation 12~36V, current : within 10A )
Spindle PWM speed: Support
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Laser engraving: Support
Power Interface: 5.5-2.5mm DC interface
Main application:
Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.
