Wonderful Sale Leetro Co2 Laser Controller For Laser Machines MPC6525(laser controller mainboard+ panel+ dongle + cable*2)

Wonderful Sale Leetro Co2 Laser Controller For Laser Machines MPC6525(laser controller mainboard+ panel+ dongle + cable*2) Rating: 3.8 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Wonderful Sale Leetro Co2 Laser Controller For Laser Machines MPC6525(laser controller mainboard+ panel+ dongle + cable*2). Price at this time US $426.70/piece. Check price now to get discount! Dont waste your time. Buy Now only in The Li Family of Mechanical Purchasing Center Trusted Seller Store!

Leetro Co2 Laser Controller For Laser Machines MPC6525(laser controller mainboard+ panel+ dongle + cable*2)

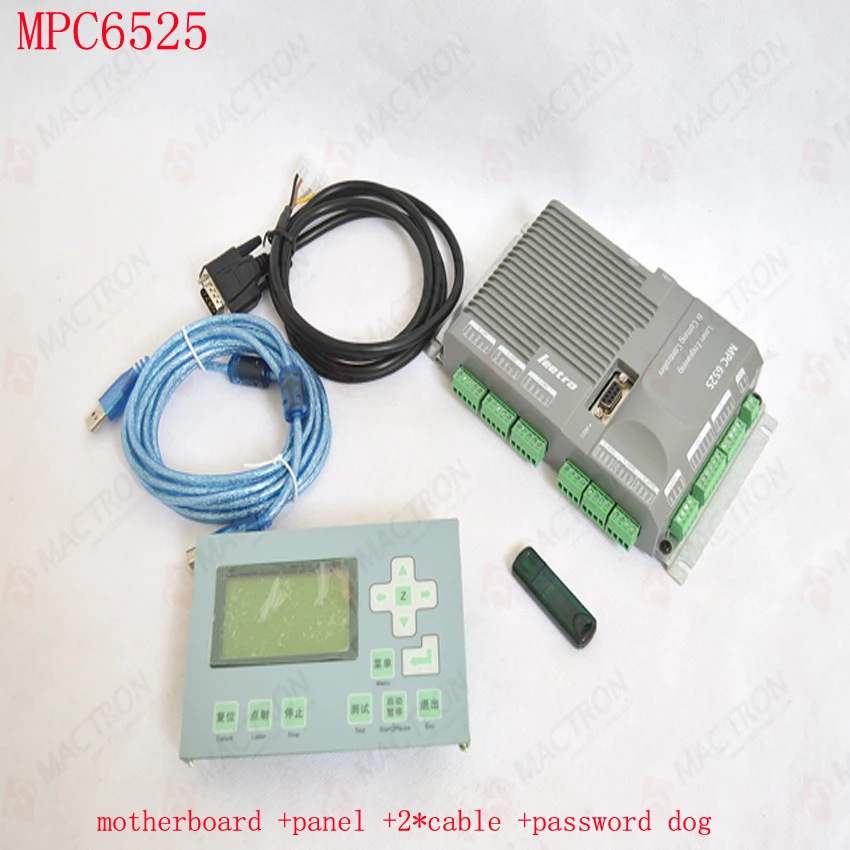

pricture showing:

Describtion:

Leetro MPC6525 Laser Controller Mainboard(laser controller mainboard+ panel+ dongle + cable*2)

1. Features:

Laser Controller Leetro MPC6525, advanced stand-alone 3-axis motion controller designed for Laser Engraving and Cutting applications. Incorporating the advanced Field Programmable Gate Array (FPGA) and a 32-bit DSP, MPC6525 provides dedicated motion control features. Motion Controller MPC6525 is famous as high performance, high stability, longer lifetime, high cost performance; it is the best Laser Control System for Laser Engraving and Cutting Machine.

2. Pin No./Pin Description:

1

2

3

4

5

6

+24V

24V GND

X1

Foot-pedal

switch

Uncapping

protection

Reverse

5v/24v GND

+5V/24V

X2

Z-axis

Forward limit

Z-axis

reverse limit

Z-axis origin

5v/24v GND

+5V/24V

X3

Z-axis

Forward limit

Z-axis

reverse limit

Y-axis origin

5v/24v GND

+5V/24V

X4

Z-axis

Forward limit

Z-axis

reverse limit

X-axis origin

5v/24v GND

+5V/24V

X5

Blow-off

END

USB flash disk

instruction light

Reverse

+5V/24V

GND

+5V/24V

Y1

Laser

Power GND

Analog output

Laser Power

Laser

Power on/off

Y2

Z-axis pulse

Z-axis

direction

5V GND

+5V

Y3

Y-axis pulse

Z-axis

direction

5V GND

+5V

Y4

Y-axis pulse

Y-axis

direction

5V GND

+5V

X1: Input power interface (24VDC)

Note: MPC6525 Motion Controller adopts mono 24VDC power supply. The other power pins are output

JP1:

Note: JP1 is related with X3, X4 and X5. If 24V voltage is required for input signal ports X3, X4 and X5, the jumper should be connected to Pin1 and Pin2. If 5V voltage is required, the jumper should be connected to Pin2 and Pin3. If the jumper is removed, disconnect Pin5 of X3, X4 and X5.

JP2:

Note: JP2 is related with Y2. For analog-control laser power, remove the jumper,connect laser power to Pin2. For PWM-control laser power, connect the power to Pin3.

JP3:

Note: JP3 is related with Y1. If output Y1 to drive a 24V relay, the jumper should be connected to Pin1 and Pin2. To drive a 5V relay, the jumper should be connected to Pin2 and Pin3. If the jumper is removed, disconnect Pin6 of Y1.

JP4:

Note: JP4 is related with X2. If 24V is required for the general input X2, the jumper should be connected to Pin1 and Pin2. If 5V voltage is required, the jumper should be connected to Pin2 and Pin3. If the jumper is removed, disconnect Pin5 of X2.

3. Wiring:

Limit and Origin switches applied with MPC6525 Laser Control System can be contact switch or NPN proximity sensor. Digital outputs of MPC6525 can drive intermediate relay or photo coupler. Refer to the following wiring diagram.

Stepper motor drives or digital servo motor drives receive Pulse/Direction outputs generated from MPC6525 Laser Controller. Refer to following wiring diagram of Pulse/Direction signals.
