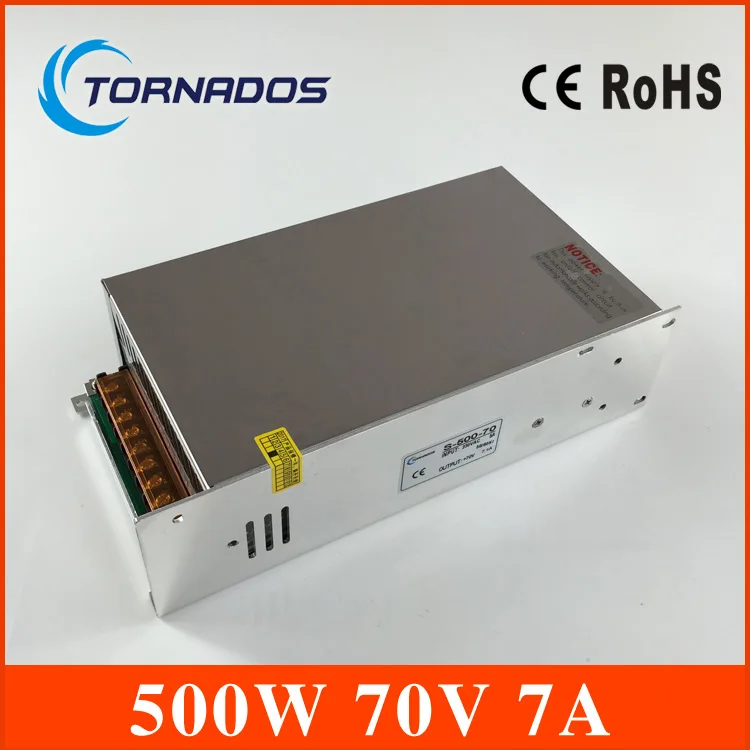

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Hurry! Deals Professional DC Power Supply 70V 7A 500w Led Driver Transformer SMPS for Engraving machine, laser cutting machine. Get Discount Now! Only US $55.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $60.00 or you can Check price now. Dont waste your time. Buy Now only in Professional power supply manufacturer Trusted Seller Store!
No uncertainty, this is a real goods that offers many conveniences as well as lucrative for you. Equally as you will obtain a ton of money, this New Hurry! Deals Professional DC Power Supply 70V 7A 500w Led Driver Transformer SMPS for Engraving machine, laser cutting machine product is able to supply a lorry that needs to be extremely fascinating for you. In choosing this Discount Hurry! Deals Professional DC Power Supply 70V 7A 500w Led Driver Transformer SMPS for Engraving machine, laser cutting machine item, you could do different considerations that are offered in the catalog. The goods catalog you get is absolutely supply a referral for those of you who intend to locate the item you want.
We accept and provide Products OEM/ODM service!
Input voltage: 110VAC/220VAC optional
Pls notice our default delivery for order is: input voltage 220vAC,
output voltage 70vDC,output power 500W and output current 7A
if you need other voltage, pls leave message when placing your order, thanks!
Feature&Advantages:
- Low price and high reliability
- 105°C output capacitor
- Universal AC input
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effectively
- With short-circuit and overload protection
- Compact size, light weight
- 100% full-load burn-in test
- Install with EMI filter, minimum wave
| Model Specification | S-500-5 | S-500-12 | S-500-24 | S-500-70 | |
| DC Output voltage | 5V | 12V | 24V | 70V | |
| Output voltage range(Note:2) | ±2% | ±1% | ±1% | ±1% | |
| Rated output current | 80A | 40A | 20A | 7A | |
| Output current range | 0~80A | 0~40A | 0~20A | 0~7A | |
| Wave and noise(Note:3) | 75mVp-p | 120mVp-p | 240mVp-p | 240mVp-p | |
| Inlet stability(Note:4) | 0.5% | ±1% | ±1% | ±1% | |
| Load stability(Note:5) | ±3% | ±1% | ±0.3% | ±0.3% | |
| DC output power | 400W | 480W | 480W | 500W | |
| Efficiency | 78% | 82% | 85% | 86% | |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% | |
| AC input voltage range | 100~132VAC/190~240VAC 250~340VDC | ||||
| Input current | 5A/230V | ||||
| AC Inrush current | Cold-start current 30A/115V 60A/230V | ||||
| Leakage current | <3.5mA/240VAC | ||||
| Overload protection | 105%-150% Type: cut down output Reset: auto recovery | ||||
| Over-voltage protection | ...................... | ||||
| High-temperature protection | ...................... | ||||
| Temperature coefficient | ±0.03%/°C(0~50°C) | ||||
| Setup, rise, hold up time | 800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v | ||||
| Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes | ||||
| Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||
| Working temperature and humidity | -10°C~+60°C(Refer to output derating curve), 20%~90%RH | ||||
| Store temperature and humidity | -20°C~+85°C, 10%~95%RH | ||||
Overall dimension | 238*124*65mm (L*W*H) | ||||
| Weight | 1.32 kg | ||||
| Safety standards | UL1012 TUVEN60950(IEC, UL1950)Approved | ||||
| EMC standards | CISPR22(EN55022), IEC801-2,3,4,IEC555-2 Verification | ||||
| Note: 1. The parameter under the testing condition: 230VAC input, rated load, 25°C70% RH. Temperature. | |||||
All our Items are 100% Top Quality Guranteed.
Top Quality, Cheap Price, Good Service is our Store Target!
Shipment
1. When you place an order, please choose a shipping method and pay for the order including the shipping fee.
And please make sure your current address after your payment within 1-2 days!
2. Free Shipping Worldwide - Usually, we will ship by china Post.
It takes 10-45 business days arrive your location.
3. We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries,
which may affect how quickly your product is inspected!
Warranty & Guarantee
24 months Warranty. Buy with confidence!
If the product malfunction under proper usage within warranty time, please contact us for shipping instruction and return it at your shipping cost.
A 7-days evaluation and investigation is needed after we receive it.
And a brand new replacement will be sent to you at our shipping cost or refund will be made after agreement,
if it is in accordance with our warranty condition.
Feedback
We are a online store, your feedback is very valuable for us.
When you get the items, you could check everything about it carefully.
If you are satisfied with our goods, we will appreciate it that you could give us a postive feedback.
If you think that we need to improve something, it is very kind of you to give us a opportunity to resolve
the problem before you leave a negative feeback.
We believe that there is a reasonable solution.
Thanks a lot! Have a nice Shopping day!
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Hurry! Deals Professional DC Power Supply 70V 7A 500w Led Driver Transformer SMPS for Engraving machine, laser cutting machine
