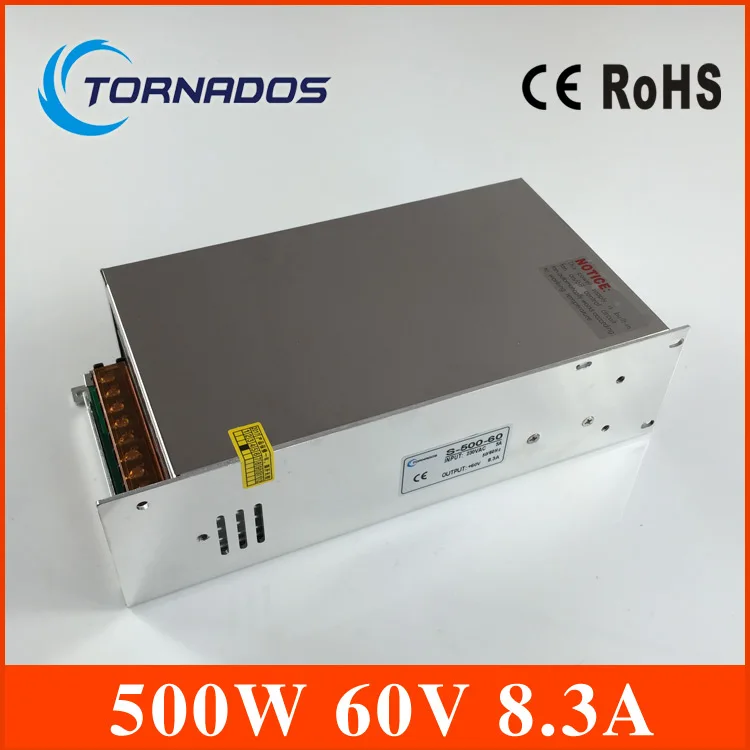

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Terrific Gift DC Power Supply 60V 8.3A 500w Led Driver Transformer 220V AC to DC 60V SMPS for Engraving machine, laser cutting machine. Get Discount Now! Only US $55.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $60.00 or you can Check price now. Dont waste your time. Buy Now only in Professional power supply manufacturer Trusted Seller Store!
We accept and provide Products OEM/ODM service!
Input voltage: 110VAC/220VAC optional
Pls notice our default delivery for order is: input voltage 220vAC,
output voltage 60vDC,output power 500W and output current 8.3A
if you need other voltage, pls leave message when placing your order, thanks!
Feature&Advantages:
- Low price and high reliability
- 105°C output capacitor
- Universal AC input
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effectively
- With short-circuit and overload protection
- Compact size, light weight
- 100% full-load burn-in test
- Install with EMI filter, minimum wave
| Model Specification | S-500-5 | S-500-12 | S-500-24 | S-500-60 | |
| DC Output voltage | 5V | 12V | 24V | 60V | |
| Output voltage range(Note:2) | ±2% | ±1% | ±1% | ±1% | |
| Rated output current | 80A | 40A | 20A | 8.3A | |
| Output current range | 0~80A | 0~40A | 0~20A | 0~8.3A | |
| Wave and noise(Note:3) | 75mVp-p | 120mVp-p | 240mVp-p | 240mVp-p | |
| Inlet stability(Note:4) | 0.5% | ±1% | ±1% | ±1% | |
| Load stability(Note:5) | ±3% | ±1% | ±0.3% | ±0.3% | |
| DC output power | 400W | 480W | 480W | 500W | |
| Efficiency | 78% | 82% | 85% | 86% | |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% | |
| AC input voltage range | 100~132VAC/190~240VAC 250~340VDC | ||||
| Input current | 5A/230V | ||||
| AC Inrush current | Cold-start current 30A/115V 60A/230V | ||||
| Leakage current | <3.5mA/240VAC | ||||
| Overload protection | 105%-150% Type: cut down output Reset: auto recovery | ||||
| Over-voltage protection | ...................... | ||||
| High-temperature protection | ...................... | ||||
| Temperature coefficient | ±0.03%/°C(0~50°C) | ||||
| Setup, rise, hold up time | 800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v | ||||
| Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes | ||||
| Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||
| Working temperature and humidity | -10°C~+60°C(Refer to output derating curve), 20%~90%RH | ||||
| Store temperature and humidity | -20°C~+85°C, 10%~95%RH | ||||
Overall dimension | 238*124*65mm (L*W*H) | ||||
| Weight | 1.32 kg | ||||
| Safety standards | UL1012 TUVEN60950(IEC, UL1950)Approved | ||||
| EMC standards | CISPR22(EN55022), IEC801-2,3,4,IEC555-2 Verification | ||||
| Note: 1. The parameter under the testing condition: 230VAC input, rated load, 25°C70% RH. Temperature. | |||||
