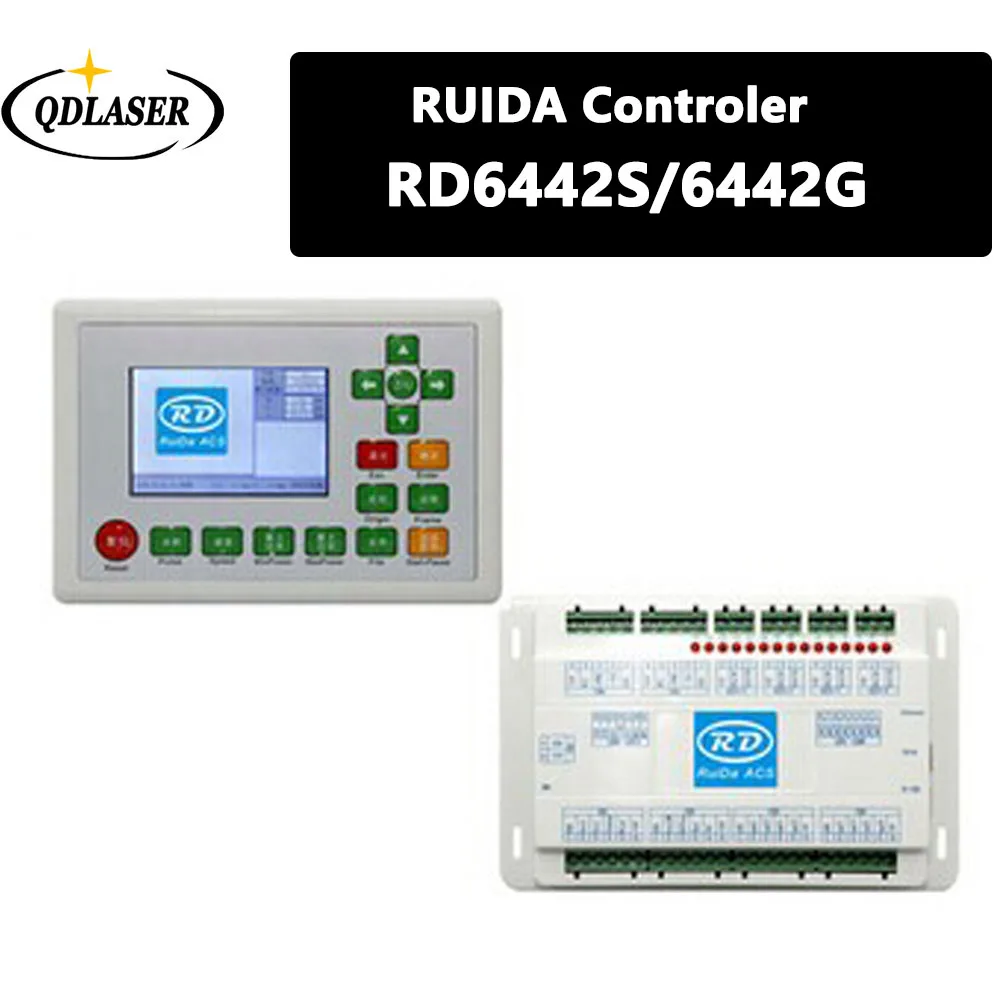

Ruida RD RDC6442G Co2 Laser DSP Controller for Laser Engraving and Cutting Machine RDC 6442 6442G 6442S
RDC644XG system is the lastest laser engraving & cutting control system developed by Ruida Technology, this control system has better stable hardware with antistatic, resistance to high pressure. Based on 3.5-inch colorfull screen human-machine operation sysytem, with better operation interface and stronger functions, exellent motion control functions, high-capacity file memory, with strong compatible 2-way independent adjustable laser power control interface, strong comopatible U disk drive program, multiple ways gerneral/dedicated IO control.
Product Model : RDC6442G
6: the sixth generation controller
4: controller version
4: 4-axis
X: displayer type (1: TTF; 2:3.5 inch colorful screen; 3: 5.7 inch colorful screen; 4:7 inch touch screen)
G: standard
Application area: laser cutting, laser engraving, laser welding etc.
Power:+24V, >2A
Temperature: 0~50 ℃, humidity is not greater than 70%
1.Technical Parameters
1.Digital laser control signals:
(1) TTL level output, 50 mA,drive capability（can set enable signal polarity in software）
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V
2.Motor control signal:common-anode output, drive capability 20 mA
Motor control pulse frequency: Max.500KHZ
3.USB: Max. transmission rate 12M bps; The longest distance is 5 meters.
4.Network:Max. transmission rate is100M; Max. transmission distance is 200M.
5.Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse
6.Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability
(with follow-current protection)
7.Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
2.Functions
The controller has better resistance to high voltage and antistatic ability
One-way 24V power supply(compatible with 36V, but not recommended)
Support all brands and capacities of U disks, quick and strong compatible copy ability
256M large-capacity file nonvolatile storage onboard, no bottlenecks limit for file size
Capable of self-checking defective track, can format memory, good in fault tolerance
10/100M Ethernet + USB2.0 communication mode for optional
Multi-way general large-current IO, convenient for function extension
Display processing path, file preview
Display processing progress bar
Communication mode can be chosen automatically
The max. four-axis stepper/servo motor open-loop control
Two-way independent digital/analog interface, software can be adjusted respectively, convenient for double laser heads control; Dedicated RF laser control interface
Soft/hard limit coordinates protection for optional
Support linear/circular arc/B-spline interpolation function
Online update mainboard program, convenient for maintenance and functions customization.
Auto-feeding, up and down, rotating engraving,left-right pushing plate, etc.
Support feeding line by line, slope engraving function
Support Power-off restart for engraving, work time preview (high accuracy to millisecond, the preview time is exact to the actual working time, the other vendor cannot realize)
Support machines backlash compensation function
Increase Z axis linkage function
System Power-on resetting or not resetting for optional
Support multiple positioning points logic
All manufacturer/user parameters can be backup and restored
Support double laser heads automatic layout and multiple virtual arrays , leftover material function
Application area: laser cutting, laser engraving, laser welding etc.
