Big Flash Deal 100W CO2 Laser Power Supply for CO2 Laser Engraving Cutting Machine MYJG-100

Big Flash Deal 100W CO2 Laser Power Supply for CO2 Laser Engraving Cutting Machine MYJG-100 Rating: 3.6 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Flash Deal 100W CO2 Laser Power Supply for CO2 Laser Engraving Cutting Machine MYJG-100. Get Discount Now! Only US $104.50/piece at this time. Hurry buy Now before back to normal price! Normal price US $110.00 or you can Check price now. Dont waste your time. Buy Now only in Shop3344004 Store Trusted Seller Store!

Terrific Special Big Flash Deal 100W CO2 Laser Power Supply for CO2 Laser Engraving Cutting Machine MYJG-100 goods could boost the top quality of your life. Eligible to be bought. Economical price and also cost-free delivery. Let's buy before rates rise.

Quality products ensure your life a lot more comfy when utilizing it. If you are interested to acquire it, you can straight contact the sales to get more details about this quality item.

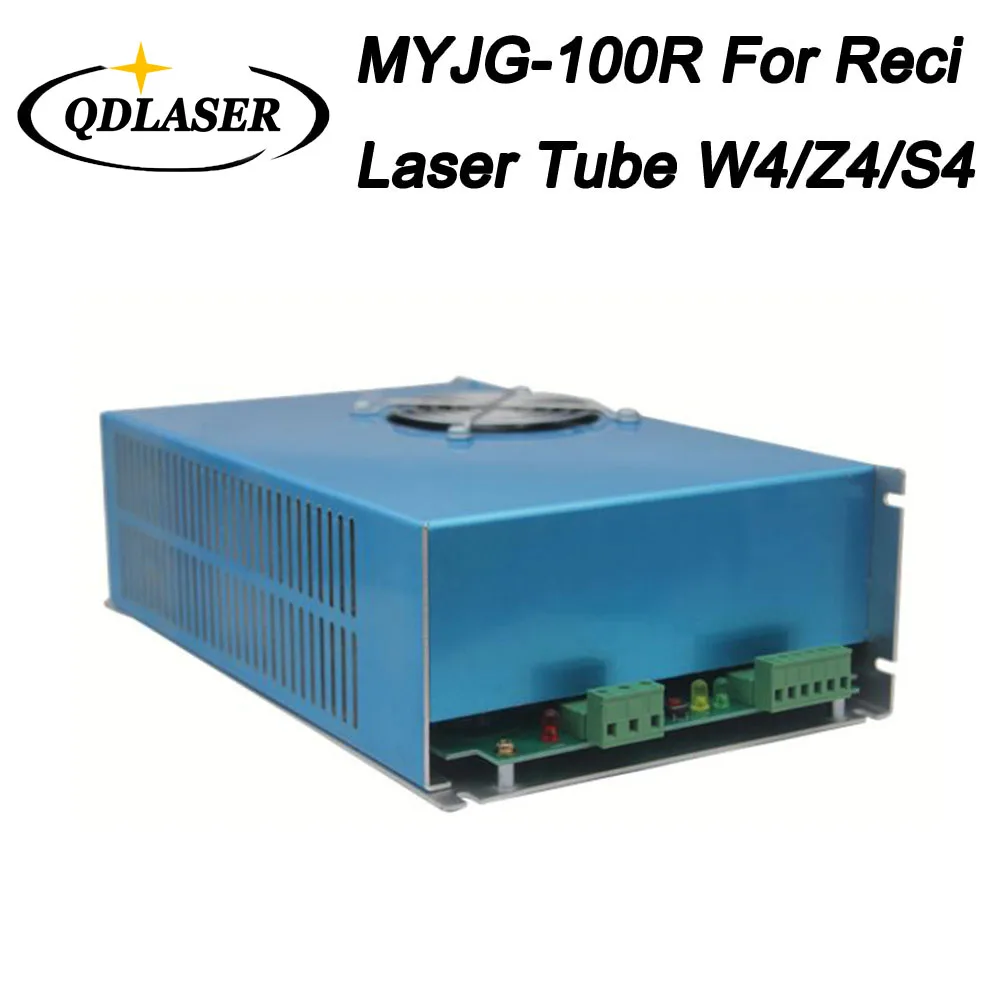

100W CO2 Laser Power Supply for CO2 Laser Engraving Cutting Machine MYJG-100

80W Laser Power Supply Main Featues:

1.Adopting zero current half-bridge soft switch circuit, the power supply is featured by high efficiency and rapid response, and easy to match laser tubes of manufacturers.

2.It has simple port control, fits high and low level signals, can control laser start and stop through TTL level, and is equipped with abnormal protection switch to detect if there is water or ventilation outside.

3.Laser power can be regulated by inputting 0-5V simulation signal or inputting PWM signal.

4.The power supply has open circuit protection function: Under the condition of good earthing protection, the power supply can work in open circuit in short time, and then it can avoid the damage caused by laser tube cracking.

5.Ex-factory aging test: Each power supply can undergo a 12h aging test at high temperature of 60ºC on full load, and 500 times of 7sec power-on/off tests.

Main Technical Data:

AC input voltage

AC220V or AC110V

DC input voltage

DC300V or DC150V

AC input frequency

47~440Hz

voltage output

45KV

Maximum current

30mA(according to laser tubes of different manufacturers)

Efficiency

91%

Overcurrent protection

130% of maximum current

Open circuit protection

Yes (short time)

Structure

Fan cooling

High level control voltage range

≥3V

Low level control voltage range

≤0.8V

Operating temperature

-30℃~+65℃

Relative humidity

20~85%RH(noncondensing)

Withstand voltage

Input—output

AC1500V1 min ≤10mA

Input—shell

AC1500V1 min ≤10mA

Output—shell

Connection

Insulation resistance

≥50MΩ(DC500V)

Earth leakage current

≤1mA(AC220V)≤0.5 mA(AC110V)

Vibration resistance

Amplitude 0.5mm frequency 10~55Hz three-dimensional direction 2h

Fault-free time MTBF

≥30,000hours

60ºC high temperature test time on full load

12 hours

7s power on/off test

500

Maximum size (L*W*H)

300mm*200mm*95mm
