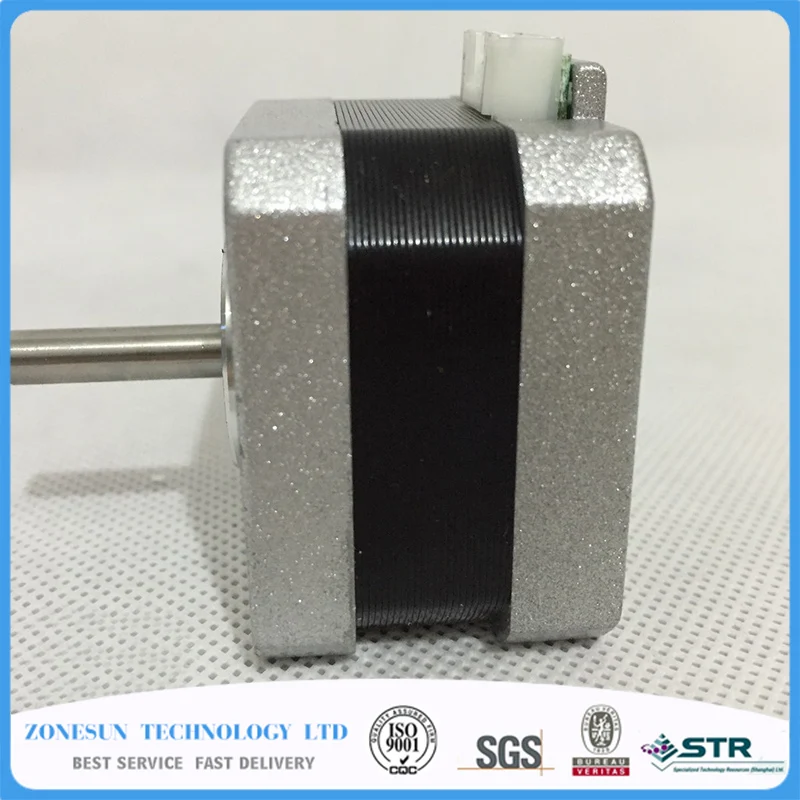

Big Sale 42 outer diameter of step motor 1.2A DC 30mm height Step Angle 1.8 degree for 3D printer and laser engraving machine

Big Sale 42 outer diameter of step motor 1.2A DC 30mm height Step Angle 1.8 degree for 3D printer and laser engraving machine lamachine Rating: 4.3 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Sale 42 outer diameter of step motor 1.2A DC 30mm height Step Angle 1.8 degree for 3D printer and laser engraving machine. Get Discount Now! Only US $10.92/piece at this time. Hurry buy Now before back to normal price! Normal price US $12.00 or you can Check price now. Dont waste your time. Buy Now only in ZONESUN Official Store Trusted Seller Store!

Low-cost rate and also complimentary delivery. Let's buy before costs increase.

Parameter Description:And overall electrical schematic diagram: See outline drawingsDrive mode: constant current chopper drive;Excitation mode: 2-phase excitation (2-phase four-run shot), you can forward and reverse rotationSteering: Press the AB-BC-CD-DA sequentially energized from the shaft extension side C.WRated current (single-phase): 1.2A DCPower supply voltage: 12-36VStep Angle: 1.8 ° Insulation class: B class insulationWorking conditions: ambient temperature: -20 ~ 50 ; Relative Humidity: 90% MAX; Mounting position: shaft horizontal or vertical installation.Test conditions (above normal test parameters measured atmospheric conditions)Winding DC resistance (25 ): 2.8Ω ± 10%Winding inductance: 4mH ± 20%Location torque: 12mN.m REF.Holding torque (two interlinked rated current): ≥200mN.m (I = 1.2A)The maximum load starting frequency: ≥1800ppsThe maximum no-load operating frequency: ≥3200ppsTemperature: <80KStep angle accuracy: 1.8 ° ± 5%Moment of inertia: 38g.cm2Motor weight: 0.18Kg / PC REF.Insulation resistance: between the motor stator core and terminals cold insulation resistance greater than 100MΩ (by DC500V megger).Dielectric strength: between the stator core and the terminals should be able to withstand AC600V / 1S without breakdown, leakage current of less than 1mA. Materials, packaging, transportation and storage: Product complies with EU RoHS directiveMotor packing must be solid and reliable, boxes should be marked "Handle with care", "moisture" signs, which should be consistent with the corresponding pattern GB191.Transportation: crates or boxes during transportation should be taken gently, to avoid collision and percussion, is strictly prohibited and acid and other corrosive materials together.Storage: Store the motor in ambient air -5 ~ + 40 , relative humidity ≤90%, clean, well-ventilated warehouse, the air must not contain corrosive gases.Shipping list: A stepper motor 42 ,connected to a wire 1 meter long
