5PCS CNC 4wires NEMA 17 Stepper Motor J42HB38-01 38oz-in 38mm 1.2A 0.26N.m(38oz-in) for Laser engraving machine
This item includes :

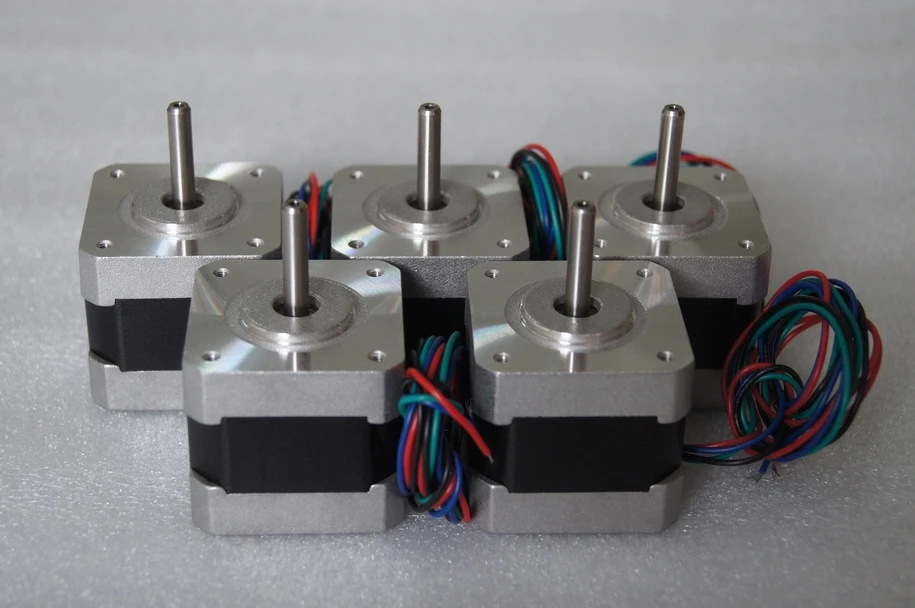

5 PCS NEMA17 hybrid stepper motor J42HB38-01 single shaft 0.26N.m(38oz-in) 1.2A 38mm
General specifications
Step Angle Accuracy: 5%
Temperature rise: 80°c Max
Ambient temperature: -20°c~+50°c
Insulation resistance: 100MΩ Min 500VDC
Dielectric strength: 500V AC 1minute
Shaft Radial Play: 0.02mm Max(450g-load)
Shaft Axial Play: 0.08mm Max(450g-load)
Specifications:
Model | Step Angle (°) | Length L(mm) | Holding Torque (N.m) | Current (A/Phase) | Resistance (Ω) | Inductance (mH) | Rotor inertia (g.cm2) | Weight (kg) | Shaft diameter (mm) | Matched driver |
J42HB38-01 | 1.8 | 38 | 0.26 | 1.2 | 3.3 | 3.2 | 54 | 0.28 | 5.0 | JB542M |
Only the representation of the products, we can design according to clients’ requirement
Dimension: unit=mm
Frequency-torque characteristics
Wiring Diagram
Installation precaution
- Data of electrical characteristics and technical data are both measured by JB542M driver, testing voltage DC28V.
- When motor mounted, be sure its front cover should be installed to the seam allowance position and attention to the fit tolerance and strictly ensure that the concentricity of electrical motor axis with the load.
- Please do not connect wrong phase when fitting the motor and the driver.
