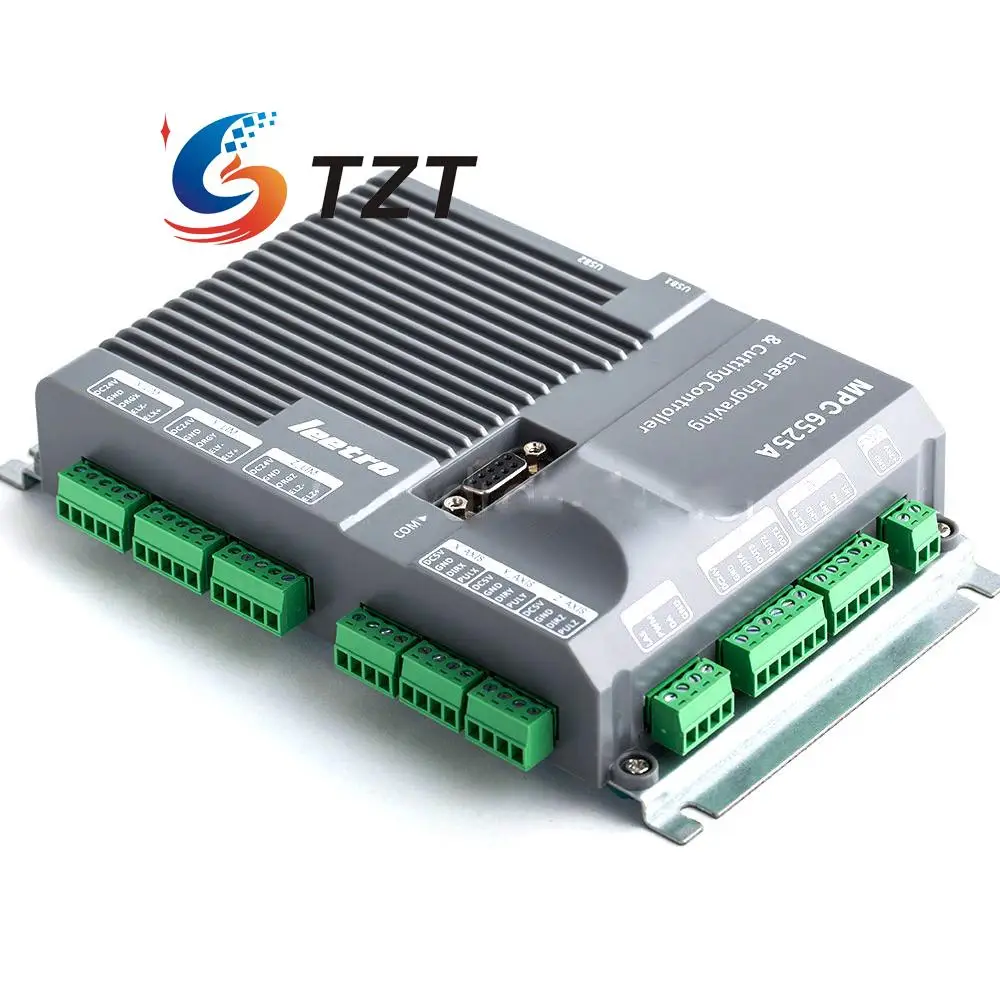

Leetro MPC 6525A Co2 Laser Controller System for Laser Engraving Cutting Machine
Description:
- MPC6525A is designed for the open-loop motion control system for the laser machine only. It is upgraded from MPC6515. Based on DSP and FPGA technology, the advanced velocity look-ahead and trajectory blending algorithm ensure the velocity invariableness and transition smoothness between any two-trajectory segments during the high speed X-Y continuous trajectory motion. And therefore the perfect smoothness and precision of the machining can be easily achieved.
- Both servo and stepper motor supported
- Break-point resume
- 2-3 axes linear interpolation and 2-axis circular interpolation
- High speed multi-axis continuous contouring
- Velocity look-ahead and trajectory blending
- Position comparison and trigger output
- Laser control is synchronized with laser head motion
- Flying-optics compensation
- Individual laser power control for dual-head system
- Master/slave USB interface
- Embedded 128MB memory
- Advanced PID algorithm to minimize cutting inaccuracy
- All digital inputs and outputs are 2500Vrms isolated
Power
Humidity: 5-90%, non condensing
Temperature: 0-60°
Working Environment
Bundled with application software, LaserCut5.3 or 6.0
Windows 2000/XP/VISTA/7/8/8.1/10 (32 and 64-bit)
Software Environment
Q pulse signal, programmable duty and frequency
Laser ON, TTL compatible
For RF tube
Laser power control: PWM, frequency or analog voltage (user select)
Laser ON, TTL compatible
For CO2 tube
Engraving control resolution is in ONE pulse on the frequency of less than 2MHz
High precision interpolation, circular interpolation resolution under 0.5 pulse
Motion Control
If you need the Manuals and Software, please leave us your email address. We will send them to you.
Package list:
| Order Code | Model | Description | Qty(pc) | Approxi. Size (mm) | Net Weight(Kg) | Type |
| 1011.00.126 | MPC6525A | Motion Control Board | 1 | 200*125*40 | 0.49 | Standard |
| 1012.00.713 | PAD04-E | Operation Panel PAD04-E, English upgraded from PAD03-E | 1 | 150*100*27 | 0.21 | Standard |
| 1012.00.900 | C4-PAD04-1.5M | Cable connects MPC6525A and PAD04-E | 1 | Length 1500 | 0.13 | Standard |
| 1012.01.000 | USB-AB-3M | USB Cable | 1 | Length 3000 | 0.13 | Standard |
| 1012.01.400 | Dongle | Software Key for LaserCut Software | 1 | 55*18*8 | 0.01 | Standard |
