Big Stock Promo Tires Laser Marking/Engraving Machine

Big Stock Promo Tires Laser Marking/Engraving Machine Rating: 5 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Stock Promo Tires Laser Marking/Engraving Machine. Price at this time US $4099.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!

Inexpensive price as well as cost-free shipping. Let's purchase prior to rates climb.

Product Description

Tires Laser Marking/Engraving Machine

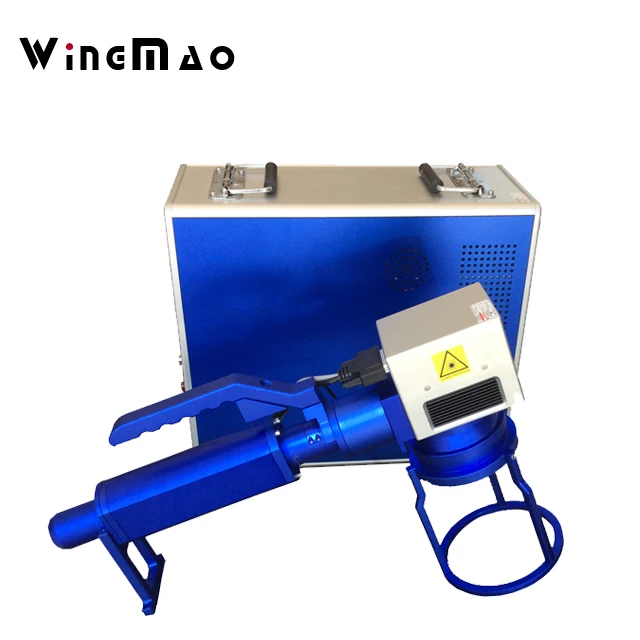

LMT2000T was designed Handheld type, laser head is 2.5kg only, low weight, easy to carry and hang. Configured 1.5M fiber cable by default, extend the cable to 3M is accepted. Good for mark tire on assmbley line, Greatly improving the production efficiency.

1.Detailed Introduction:

2.The Equipment Working Principle :

Print efficiency to high-speed galvanometer laser beam positioning, field mirror focused on the workpiece, through the role of high-energy laser beam to the desired results.

3. Why this model laser is good for tire:

High Speed laser head

Configured Sunny lens and SingaporeWavelength glavonometer, up to 13000mm/s.

Precision

The holder length is equal to focal length, neednt to find focal point, just use it directly.

Stop and Print Button

It have stop and print function, easy to control it stop when emergency situation, more easy to control than foot pedal, foot pedal can be configured as well if you need.

Control Card

Configured BJJCZ LMCV4-FIBER control card,

Win7/8/10 system are accpted, both 32 bites and 64bites, it can upgarde with your system.

MAX Laser source

Configured China famous MAX laser source with high quallity and good service, IPG,SPI and Raycus laser cource can be configured as per request.

Power Supply

Here are three power supply, respectively areuse on control card, laser source(the middle and big one) and galvonometer.

Keyswitch

European Union (EU) regulations.

lasers must comply CDRH, FCC, and EU requirements depends in part on thelaserversion selected—Keyswitch or OEM.

Exhaust Fan

Besides the exhaust fans, both sides of the machine using hollow design,better coolingeffect, Make the machine more durable anddifficult to damage.

4.A Line Working Principle:

Pipeline online laser marking machine equipped with high-speed galvanometer scanning system, the photoelectric sensor to give the signal trigger laser marking machine operations, the use of professional online flight marking control software to achieve the pipeline products to mark.

5.Sample Show:

Click the photo to see the compelet video.

6.Specification

Output Power: 10/20/30/50w
Laser Wavelength: 1064nm
Work Pattern: Q-Switched
Pulse Frequency:20KHz-80Khz
Working Window:110*110mm by default
Minimal Marking Character Height:0.01mm
Maximal Marking Depth:0.50m, Depends on Working Material
Minimal Marking Width:0.01mm
Maximal Marking Speed:13,000mm/s
Beam Quality: M2<1.3
Positioning Accuracy:+/-0.02mm
Expected Laser MTBF:20,000 Hours
Cooling: Air Cooled
Working Tempratures:
0 to 40 degree
Power Consumption:<=500W

7.The two model machine for tire:

Portable design laser marking machine for pipeHandheld design laser marking machine for pipe

Wood case or as per required.

The delivery lead time would be 5 days against down payment.

We are VIP customer for both DHL and TNT express, the end customer can enjoy fast door to door service with reasonable freight cost. We welcome customer to bear the freight by self owned account ID, the exchange bank commission could be saved.

As for the wholesalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.

FAQ 1.how big logo or letter can be mark?

300*300mm working area is the max working area.

Any other questions?

Why not SEND INQUIRY NOW? or CALL OUR HOTLINE directly.

Contact:

Ice Zeng(Ms.)

Tel: 86 23 8682 0070

Whatsapp: 86 155 2329 6805
