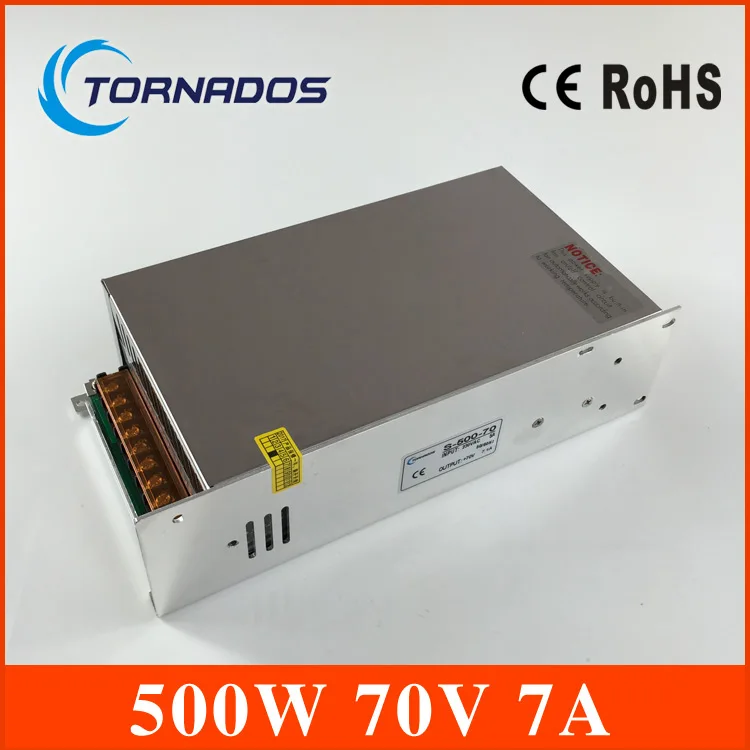

Hot Limited Professional DC Power Supply 70V 7A 500w Led Driver Transformer SMPS for Engraving machine, laser cutting machine

Hot Limited Professional DC Power Supply 70V 7A 500w Led Driver Transformer SMPS for Engraving machine, laser cutting machine Rating: 2.5 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Hot Limited Professional DC Power Supply 70V 7A 500w Led Driver Transformer SMPS for Engraving machine, laser cutting machine. Get Discount Now! Only US $55.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $60.00 or you can Check price now. Dont waste your time. Buy Now only in Professional power supply manufacturer Trusted Seller Store!
-


We accept and provide Products OEM/ODM service!


Input voltage: 110VAC/220VAC optional
Pls notice our default delivery for order is: input voltage 220vAC,
output voltage 70vDC,output power 500W and output current 7A
if you need other voltage, pls leave message when placing your order, thanks!

Feature&Advantages:

  • Low price and high reliability
  • 105°C output capacitor
  • Universal AC input
  • High efficiency and low operation temperature
  • Soft-start current can reduce the AC input impact effectively
  • With short-circuit and overload protection
  • Compact size, light weight
  • 100% full-load burn-in test
  • Install with EMI filter, minimum wave

Model

Specification

S-500-5 S-500-12 S-500-24 S-500-70
DC Output voltage 5V 12V 24V 70V
Output voltage range(Note:2) ±2% ±1% ±1% ±1%
Rated output current 80A 40A 20A 7A
Output current range 0~80A 0~40A 0~20A 0~7A
Wave and noise(Note:3) 75mVp-p 120mVp-p 240mVp-p 240mVp-p
Inlet stability(Note:4) 0.5% ±1% ±1% ±1%
Load stability(Note:5) ±3% ±1% ±0.3% ±0.3%
DC output power 400W 480W 480W 500W
Efficiency 78% 82% 85% 86%
Adjustable range for DC voltage ±10% ±10% ±10% ±10%
AC input voltage range 100~132VAC/190~240VAC 250~340VDC
Input current 5A/230V
AC Inrush current Cold-start current 30A/115V 60A/230V
Leakage current <3.5mA/240VAC
Overload protection 105%-150% Type: cut down output Reset: auto recovery
Over-voltage protection ......................
High-temperature protection ......................
Temperature coefficient ±0.03%/°C(0~50°C)
Setup, rise, hold up time 800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v
Vibration 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity -10°C~+60°C(Refer to output derating curve), 20%~90%RH
Store temperature and humidity -20°C~+85°C, 10%~95%RH

Overall dimension

238*124*65mm (L*W*H)
Weight 1.32 kg
Safety standards UL1012 TUVEN60950(IEC, UL1950)Approved
EMC standards CISPR22(EN55022), IEC801-2,3,4,IEC555-2 Verification

Note:

1. The parameter under the testing condition: 230VAC input, rated load, 25°C70% RH. Temperature.
2. Tolerance: Including setting tolerance, circuit stability and load stability. (Note: 5).
3. Wave test: Adopting “A12” double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
4. Inlet voltage stability test: the lowest voltage will be up to the highest voltage when the circuit overload.
5. Load stability test: The load is from 0% to 100%.
6. C6 must be knocked down.
