Fast Gift Assembly line Laser marking plastic bottle/pvc pipe/stainless steel pipe

Fast Gift Assembly line Laser marking plastic bottle/pvc pipe/stainless steel pipe Rating: 4.5 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Fast Gift Assembly line Laser marking plastic bottle/pvc pipe/stainless steel pipe. Price at this time US $5459.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
These days this item is truly budget-friendly for practically everybody and its an extremely good buy for the loan.

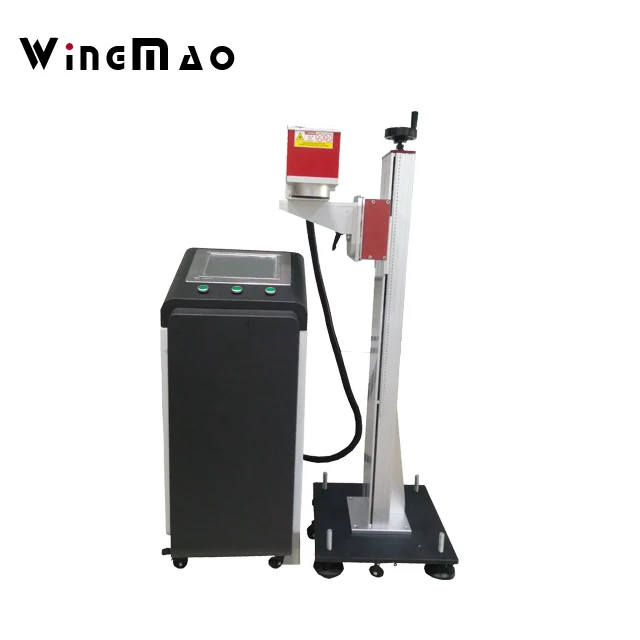

Assembly line Laser marking plastic bottle/pvc pipe/stainless steel pipe

LMT2000F was designed for work on assmbley line, especially good for pipe industry, food package industry, lighting industry, etc. Greatly improving the production efficiency, such as PVC pipe marking.

1.Detailed Introduction:

2.The Equipment Working Principle :

Print efficiency to high-speed galvanometer laser beam positioning, field mirror focused on the workpiece, through the role of high-energy laser beam to the desired results.

3. Why this model laser is good for pvc pipe:

UP and down handle

Easy to up and down the laser head, and more easy to fet the focus position.

80CM high Z aixs

High z aixs design, siut for almost assembly line, especially for pipe industry.

Adjustable Marking Angel

Adjustable angel design, there is barely nolimited in workpieces size and makring/ printing position.

High speed laser head

Configured Sunny lens and Singapore Wavelength glavonometer, up to 13000mm/s

LCD Touch Screen

It is KLF control card, it give up some fuctions,only retain a funtion for pipe, morestable and precision.

Embedded touch screen, to avoid collision and damage Accidentally

USB port and SD card port

you can import data from you U-disk and SD card.

Shortcut button

The functions of the three green key are “print” "scram button" and "indicator light", easy to control the machine

Exhaust fan

Besides the exhaust fans, both sides of the machine using hollow design,better cooling effect, Make the machine more durable anddifficult to damage.

"Maiman" is our trademark in USA

Wheels

Both laser parts and laser source parts are wheels deign, esay to move.

welcome to visit our webiste :

en.maimanmachinery.com

4.A Line Working Principle:

Pipeline online laser marking machine equipped with high-speed galvanometer scanning system, the photoelectric sensor to give the signal trigger laser marking machine operations, the use of professional online flight marking control software to achieve the pipeline products to mark.

5.Sample Show:

We have all kinds of lasers to meet all pipe applications, like metal pipe, pvc pipe,hdpe pipe and so on.

6.Specification

Output Power: 10/20/30/50w
Laser Wavelength: 1064nm
Work Pattern: Q-Switched
Pulse Frequency:20KHz-80Khz
Working Window:110*110mm by default
Minimal Marking Character Height:0.01mm
Maximal Marking Depth:0.50m, Depends on Working Material
Minimal Marking Width:0.01mm
Maximal Marking Speed:13,000mm/s
Beam Quality: M2<1.3
Positioning Accuracy:+/-0.02mm
Expected Laser MTBF:20,000 Hours
Cooling: Air Cooled
Working Tempratures:
0 to 40 degree
Power Consumption:<=500W

7.The two model machine for pvc pipe:

Portable design laser marking machine for pipeHandheld design laser marking machine for pipe

Wood case or as per required.

The delivery lead time would be 5 days against down payment.

We are VIP customer for both DHL and TNT express, the end customer can enjoy fast door to door service with reasonable freight cost. We welcome customer to bear the freight by self owned account ID, the exchange bank commission could be saved.

As for the wholesalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.

FAQ

1.What kind of pipe can be mark?

we have all type laser source, can mark all kind of material pipe, like PVC, PP, HDPE,UMHDPE and so on.

Any other questions?

Why not SEND INQUIRY NOW? or CALL OUR HOTLINE directly.

Contact:

Ice Zeng(Ms.)

Tel: 86 23 8682 0070

Whatsapp: 86 155 2329 6805
