Fast Gift 180w 150w wood acrylic laser cutting machine for metal and non-metal co2 metal cutter cnc sheet metal cutting machine

Fast Gift 180w 150w wood acrylic laser cutting machine for metal and non-metal co2 metal cutter cnc sheet metal cutting machine Rating: 4.9 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Fast Gift 180w 150w wood acrylic laser cutting machine for metal and non-metal co2 metal cutter cnc sheet metal cutting machine. Price at this time US $7700.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Nice

180w 150w wood acrylic laser cutting machine for metal and non-metal co2 metal cutter cnc sheet metal cutting machine

ball screw metal cutter laser with servo motor

Product Description

This model with ball screw tranmission ,and servo motor with high precision .

This stainless steel cutting machine can use for cutting metal&nonmetal meterial.

Metal materail: This machine can cut carbon steel, stainless steel, According to different metal materials and thickness, we will adjust the pluse width, current, frequency, cutting speed.

Non-metallic materails: Wood, Bamboo, jade articale, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.

Cutting capacity of cnc sheet metal cutting machine

stainless steelcarbon steelacrylicwood
2mm3.5mm30mm26mm

Feature of cnc sheet metal cutting machine

1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board

2.High precision:Imported servo motor with imported ball screw tansmission greatly improve the response speed and cutting precision of equipment, extend the time of using.

3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area.

4.High precision and Good stability :With precision ball screw transmission mechanism and optimized the nc system control, it can meet the precision parts processing,stable dynamic performance,also can work for long hours.

5. The cutting section with good quality:Mechanical follow-up cutting head system,

cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting.

6.Adopt sealed co2 laser tube , main consumable items are electric energy,watercooling, auxiliary gas and laser light

7. Sample structure, easy operation, stable laser device and low maintenance cost.

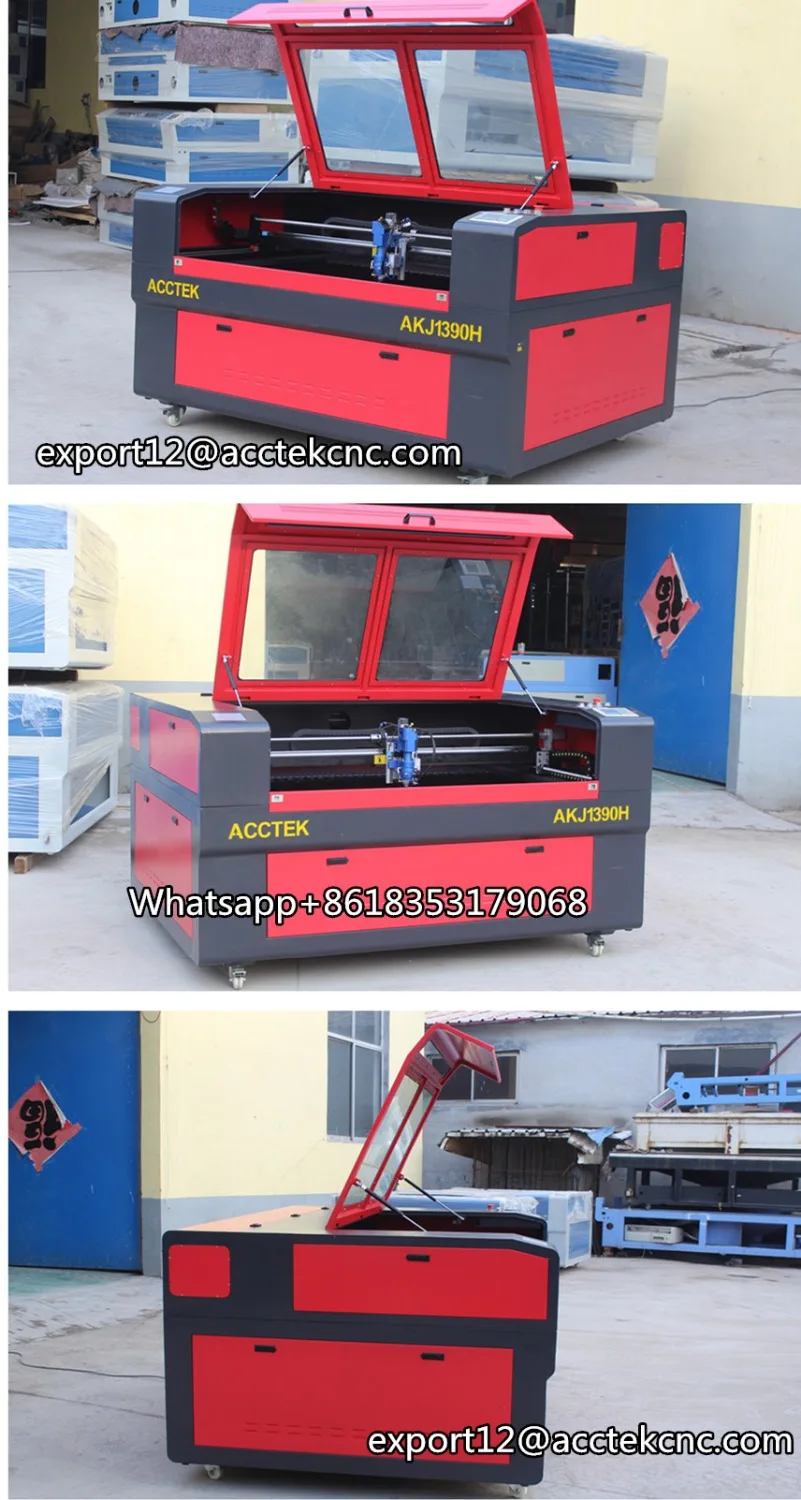

Detailed Images

Parameter

Techniocal parameter of cnc sheet metal cutting machine

Model

AKJ1390H

Working area

1300*900mm

Laser power

Reci 150/180w options:260W laser tube (EFR or Yongli can select)

Laser type

CO2 laser tube,water-cooling

Engraving speed

0-40000mm/min

Cutting speed

0-20000mm/min

Power supply

220V/50HZ , 110V/60HZ

Position accuracy

0.01mm

Repetition accuracy

0.02mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Guide rail

Hiwin from Taiwan

Transmission method

Ball screw transmission

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Driving system

Stepper motor and driver

Net Weight

450kg

Optional part

Partial up-down work table, USB Port, Autofocus

Samples

Our Services

1.Before-Sale: we will try to know your requests about what work you will do and help you choose the most suitable machine specification & give you the best solution.

2.During Production: we will send photos of machines during production. so customers can know more details about the procession of making their machines and give them suggestions.

3.After Shipping: we will give you the tracking information of the sea vessel so customers can know when it will arrive at your port and make enough preparation.

4.About Training: there are some manual and video about how to install & use machine , if you have any questions

you can contact me any time, then i arrange our professional technicians to help you by video, pictures, call or email.

5. Service In Life-Time: No matter how many years passed, you always can contact me, we can give you any technical support in the future life-time.

6. About Warranty: 1.5 years for the whole machine;6 months for equipments outfit, such as exhaust fan, air pump, ,mirrors, lens etc;6 months for high quality EFR or Yongli 260w laser tube ,3 months for ordinary laser tube.
