Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine 2018 New MDF wood acrylic cheap laser metal cutting machine ,Carbon steel 2mm cutting laser cutting machine metal 1390. Price at this time US $7700.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Affordable cost as well as totally free shipping. Allow's purchase Discount 2018 New MDF wood acrylic cheap laser metal cutting machine ,Carbon steel 2mm cutting laser cutting machine metal 1390 before costs climb.

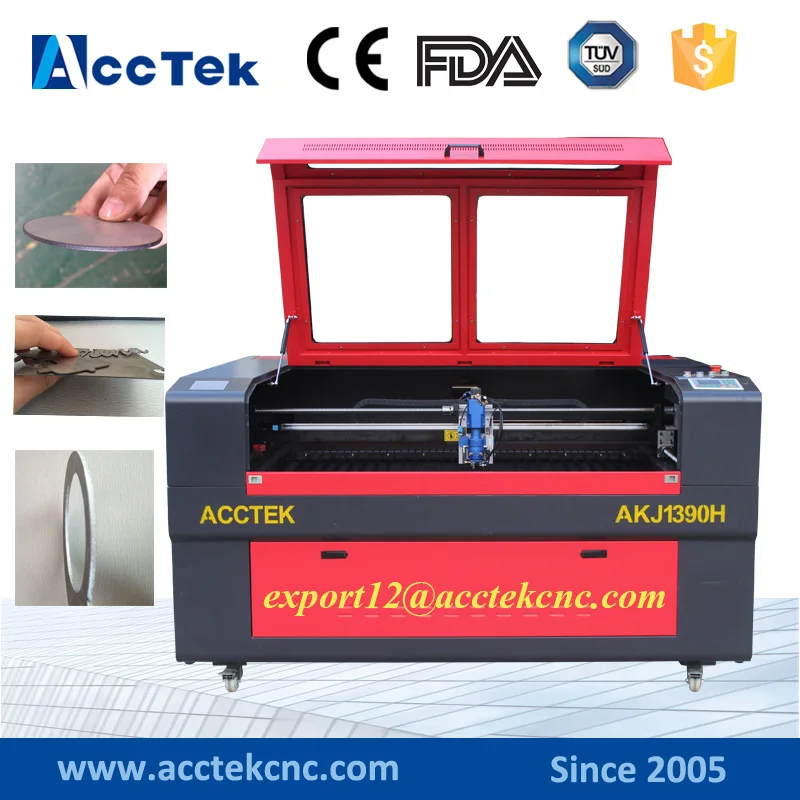

MDF wood acrylic cheap laser metal cutting machine ,Carbon steel 2mm cutting laser cutting machine metal 1390
ball screw metal cutter laser with servo motor
Product DescriptionThis model with ball screw tranmission ,and servo motor with high precision .
This stainless steel cutting machine can use for cutting metal&nonmetal meterial.
Metal materail: This machine can cut carbon steel, stainless steel, According to different metal materials and thickness, we will adjust the pluse width, current, frequency, cutting speed.
Non-metallic materails: Wood, Bamboo, jade articale, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.
Cutting capacity of laser cutting machine metal
stainless steel | carbon steel | acrylic | wood |
2mm | 3.5mm | 30mm | 26mm |
Feature of laser cutting machine metal
1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board
2.High precision:Imported servo motor with imported ball screw tansmission greatly improve the response speed and cutting precision of equipment, extend the time of using.
3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area.
4.High precision and Good stability :With precision ball screw transmission mechanism and optimized the nc system control, it can meet the precision parts processing,stable dynamic performance,also can work for long hours.
5. The cutting section with good quality:Mechanical follow-up cutting head system,
cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting.
6.Adopt sealed co2 laser tube , main consumable items are electric energy,watercooling, auxiliary gas and laser light
7. Sample structure, easy operation, stable laser device and low maintenance cost.
Detailed ImagesParameter
Techniocal parameter of laser cutting machine metal
Model | AKJ1390H |
Working area | 1300*900mm |
Laser power | Reci 150/180w options:260W laser tube (EFR or Yongli can select) |
Laser type | CO2 laser tube,water-cooling |
Engraving speed | 0-40000mm/min |
Cutting speed | 0-20000mm/min |
Power supply | 220V/50HZ , 110V/60HZ |
Position accuracy | 0.01mm |
Repetition accuracy | 0.02mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Guide rail | Hiwin from Taiwan |
Transmission method | Ball screw transmission |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | Stepper motor and driver |
Net Weight | 450kg |
Optional part | Partial up-down work table, USB Port, Autofocus |
1.Before-Sale: we will try to know your requests about what work you will do and help you choose the most suitable machine specification & give you the best solution.
2.During Production: we will send photos of machines during production. so customers can know more details about the procession of making their machines and give them suggestions.
3.After Shipping: we will give you the tracking information of the sea vessel so customers can know when it will arrive at your port and make enough preparation.
4.About Training: there are some manual and video about how to install & use machine , if you have any questions
you can contact me any time, then i arrange our professional technicians to help you by video, pictures, call or email.
5. Service In Life-Time: No matter how many years passed, you always can contact me, we can give you any technical support in the future life-time.
6. About Warranty: 1.5 years for the whole machine;6 months for equipments outfit, such as exhaust fan, air pump, ,mirrors, lens etc;6 months for high quality EFR or Yongli 260w laser tube ,3 months for ordinary laser tube.
