Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer 2018 Deals TL510 TL510A Or TL510C Optical Power Meter with FC SC ST Connector +TL532 Red Laser Fiber Optic Cable Tester (Range: 10-12km). Get Discount Now! Only US $63.99/piece at this time. Hurry buy Now before back to normal price! Normal price US $79.99 or you can Check price now. Dont waste your time. Buy Now only in Ray Fire Lighting Co., Ltd Trusted Seller Store!
Terrific Special 2018 Deals TL510 TL510A Or TL510C Optical Power Meter with FC SC ST Connector +TL532 Red Laser Fiber Optic Cable Tester (Range: 10-12km) product can improve the quality of your life. Eligible to be purchased. Inexpensive price and free shipping. Allow's get before rates increase.
Simply as you will certainly get a ton of money, this goods is able to provide a car that needs to be really interesting for you. The product magazine you obtain is definitely give a referral for those of you who desire to locate the product you want.

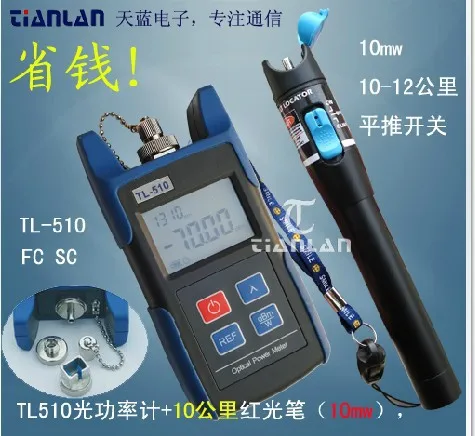

TL510 Optical Power Meter with FC SC ST Connector +TL532 Red Laser Fiber Optic Cable Tester (Range: 10-12km)
please leave me massage which one do you need when you order(TL510A or TL510C)?
Optical Power Meter TL510 + TL532 red pens are the most popular field of optical fiber communication test instrument, but also the most cost-effective. FTTH fiber optic construction indispensable tool!
1.TL510 Optical Power Meter
Specifications:
| A Type | C Type | |
| Wavelength(nm) | 800~1700nm | |
| Detector | InGaAs | |
| Measurement Range (dBm) | -70~+10 | -50~+26 |
| Uncertainty | <±3%(-10dBm, 22°c) | |
| Calibrated Wavelength(nm) | 850,1300,1310,1490,1550, 1625 | |
| Resolution(dB) | Linear 0.1% or Non-linear 0.01dBm | |
| Optical Connector | FC/SC | |
| Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |
| Battery Operating Time | 120 h with 1.5V Battery(3) | |
| Operating Temperature(°c) | -10 ~ +50 | |
| Storage Temperature(°c) | -20 ~ +70 | |
| Relative Humidity | 0 to 95% (non-condensing) | |
| Dimension(mm) | 130 x 63 x 29 | |
| Weight(g) | 160 | |
TL532 Red Laser Fiber Optic Cable Tester (Range: 10-12km)
This Visual Fault Locator uses the DFB-LD as the emitting component. Driven by constant current source, the indicator can emit stable red laser. The product can be used to inspect fiber failure when they connect with optical interface and be inserted into single mode or multi mode optical fiber.It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.
1. Laser Output: 10mW2. Pulse Frequency: Class 2Hz
3. Laser Range: Up to 10-15km
4. Wavelength of optical source: 650±10nm
5. Applicable fiber type: single mode or multi mode
6. Continuous working time of power: ≥20h
7. Working temperature: -20~+60C (not dewing)
8. Storage temperature: -40~+85C
9. Connector: 2.5mm universal connector for 1.25mm connectors FC (Male)-LC
10. Functions: Continuous-wave or pulsed mode with constant output power
11. Power: 2x AA batteries (not included)
12. Casing Material: Die cast aluminum with silver anodized finish
13. Dimensions: 188(L) x 25(Dia)mm
