Terrific Limited LCDA86H+LC86H2128 20-70VAC/30~100VDC 2PH 7.5A 10.5NM NEMA34 86mm DSP Closed-Loop Step Motor Drive Kit for Laser Machine

Terrific Limited LCDA86H+LC86H2128 20-70VAC/30~100VDC 2PH 7.5A 10.5NM NEMA34 86mm DSP Closed-Loop Step Motor Drive Kit for Laser Machine lamachine Rating: 4.3 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Terrific Limited LCDA86H+LC86H2128 20-70VAC/30~100VDC 2PH 7.5A 10.5NM NEMA34 86mm DSP Closed-Loop Step Motor Drive Kit for Laser Machine. Price at this time US $142.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in EX-press shopping Store Trusted Seller Store!

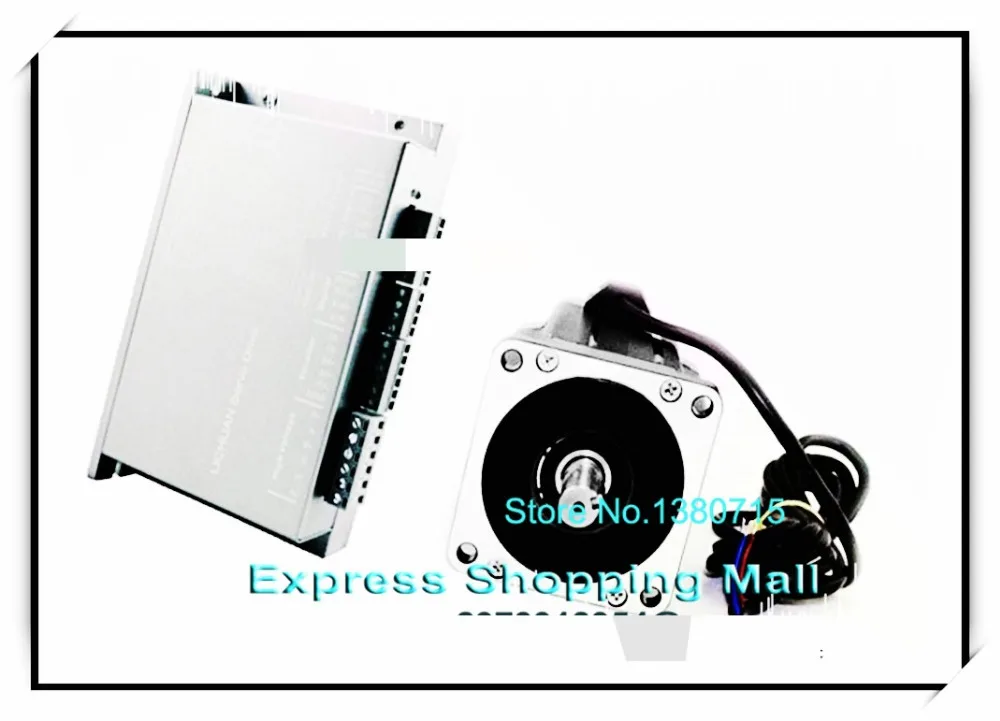

LCDA86H+LC86H2128 20-70VAC/30~100VDC 2PH 7.5A 10.5NM NEMA34 86mm DSP Closed-Loop Step Motor Drive Kit for Laser Machine Package: 1. motor LC86H2128 2. drive LCDA86H 3. Encoder cable& Power Cable Motor Electrical Specifications Model Phase Holding torque Phase current Motor Length rotational inertia Weight kg Encoder ppr LC86H260 2 3Nm 6A 60mm 1.1g.m2 2 1000 LC86H268 2 3.6Nm 6A 68mm 1.4 g.m2 2.2 1000 LC86H280 2 4.5NM 6A 80mm 1.8 g.m2 2.5 1000 LC86H298 2 7.2NM 6A 98mm 2.8 g.m2 3.3 1000 LC86H2120 2 8.5NM 6A 120mm 3.6 g.m2 4 1000 LC86H2128 2 10.5NM 7.5A 128mm 4.2g.m2 4.5 1000 LC86H2160 2 12nm 7.5A 160mm 5.4 g.m2 5.4 1000 Drive functional characteristics Model LCDA86H working voltage 20-70VAC/30~100VDC peak current 6A control mode 32 bits DSP closed-loop vector control technology Pulse limit frequency Defaulting 200 KHZ/500 KHZ (optional) defensive function Over-current, over-voltage and tracking error out-of-tolerance alarm incoming signal Pulses, direction and enable signal outcoming signal In position signal and fault output signal motor encoder feedback AB differential input subdivisions The default 4000/rev, through debugging software can install arbitrarily subdivisions (200-51200) storage temperature -20-80 degree centigrade Ambient Temp 0-50 degree centigrade Ambient thumidity 40-90RH parameter setting Static current, subdivisions, effective along, fault signal output signal level, position loop and current loop and parameter settings. Application: It is suitable all kinds of Small and medium-sized automation equipment and instrumentation. Such as carving machine, wire-stripping machine, marking machine, cutting machine, laser machine, plotting instrument, medical equipment, CNC, etc. This is efficient for the equipment with Low noise and high-speed. Motor Mechanical Dimensions Payment 1. We accept ESCROW/PAYPAL/WESTERN UNION/BANK TRANSFE. 2. If you have any difficulty in paying your items, pls contact us first and we will soon help to solve it. Shipping 1. Rule all items will be shipping within 4 business days after you placed order. 2. UPS/DHL/FedEX express shipping usually takes 3-5 working days depended on the country delivered to. We will choose the best and most suitable shipping for you. 3. Customer should pay for the custom fee in any case. 4. We are not responsible for any accidents, delay or other issues that are the responsibility of the shipping service. Warranty& Return Policy 1. The items are ALL BRAND New Original .All products have been checked and packaged in good condition before dispatch. 2. You have 14 days to return the items from the date they were received. If the items are your possession more then 14 days, we would provide the 12 months Manufacturers for defective items. 3. All returned items must be in the original packaging and you must provide us with the shipping tracking number, specific reason for the return, and your ID. 4. Return shipping is to be paid by the buyer
