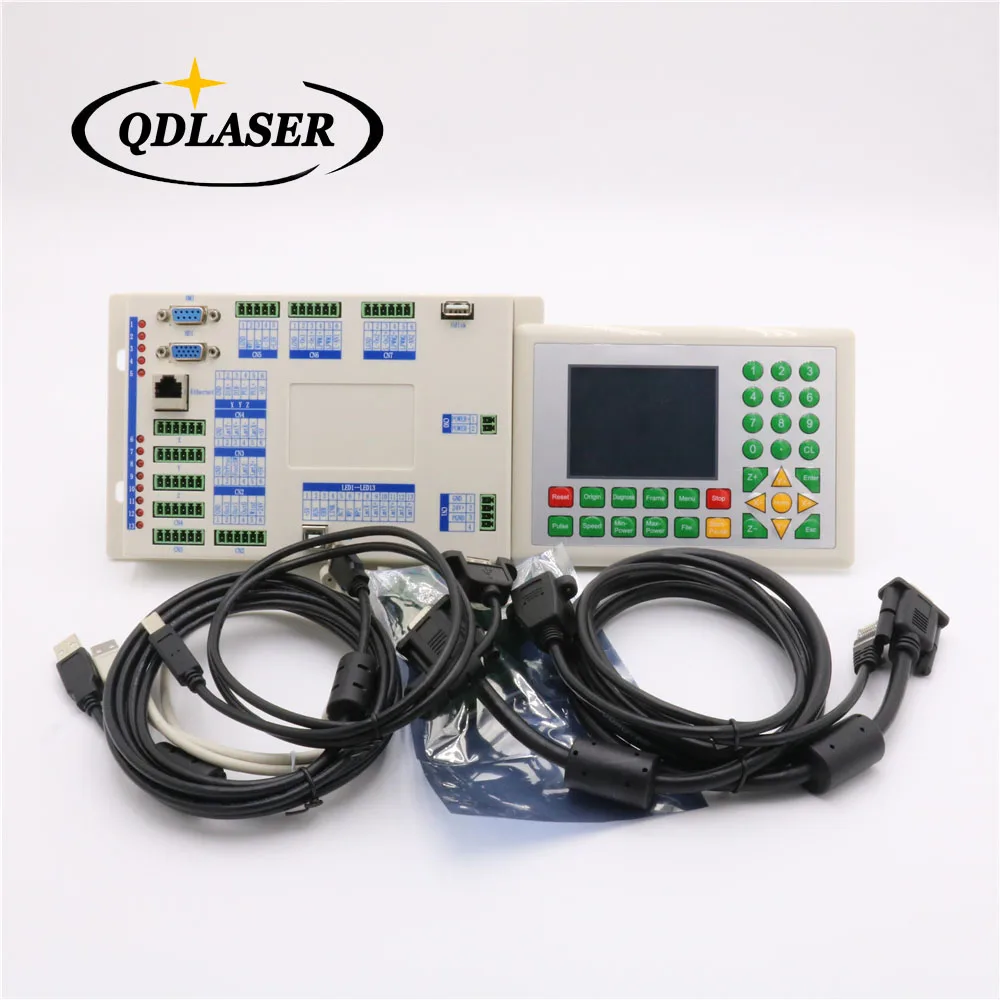

Ruida RD6332G Co2 Laser DSP Controller for Laser Engraving and Cutting Machine 3 Axis control

3-axis laser cutting & engraving controller RDC6332G

Technical Parameters

1.Digital laser control signals:

(1) Differential output, TTL level, 20 mA,drive capability
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 4.5 V

2.Analog laser control signal:0 ~ 5V tracing adjustable automatically

3.Motor control signal:differential output, TTL level, drive capability 20 mA

4.Motor control pulse frequency:Max.500 KHZ

5.USB:Max. transmission rate is 12M bps ; the longest distance is 5 meters.

6.Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse

7.Output:4-channel, photoelectric isolated OC gate output; max.drive capability is 500mA

8.Input:4-channel, photoelectric isolated input, TTL level

Product Introduction

RDC6332G system is the latest laser engraving & cutting control system developed by Ruida Technology, this control system has better stable hardware with antistatic, resistance to high pressure. The human-machine operation system based on LINUX, with better operation interface and power functions, excellent motion control functions, high-capacity file memory, with strong compatible 2-way independent adjustable analog/digital laser power control interface, strong compatible U disk drive program, multiple ways gerneral/dedicated IO control. Integrated dedicated time system supporting hardware encryption algorithm.

Functions

The controller has better resistance to high voltage and antistatic ability

One-way 24V power supply(compatible with 36V, but not recommended)

Support all brands and capacities of U disks, quick and strong compatible copy ability

256M large-capacity file nonvolatile storage onboard, no bottlenecks limit for file size

Capable of self-checking defective track, can format memory, good in fault tolerance

10/100M Ethernet + USB2.0 communication mode for optional

Multi-way general large-current IO, convenient for function extension

Display processing path, file preview

Two-way independent digital/analog interface, software can be adjusted respectively, convenient for double laser heads control; Dedicated RF laser control interface

Soft/hard limit coordinates protection for optional

Support linear/circular arc/B-spline interpolation function

Time system on board ( year-month-day, more reliable hardware encryption algorithm)

Online update mainboard program, convenient for maintenance and functions customization.

Auto-feeding, up and down, rotating engraving,left-right pushing plate, etc.

Support feeding line by line, slope engraving function

Support Power-off restart for engraving, work time preview (high accuracy to millisecond, the preview time is exact to the actual working time, the other vendor cannot realize)

Support machines backlash compensation function

Increase Z axes linkage function

System Power-on resetting or not resetting for optional

Support multiple positioning points logic

All manufacturer/user parameters can be backup and restored
