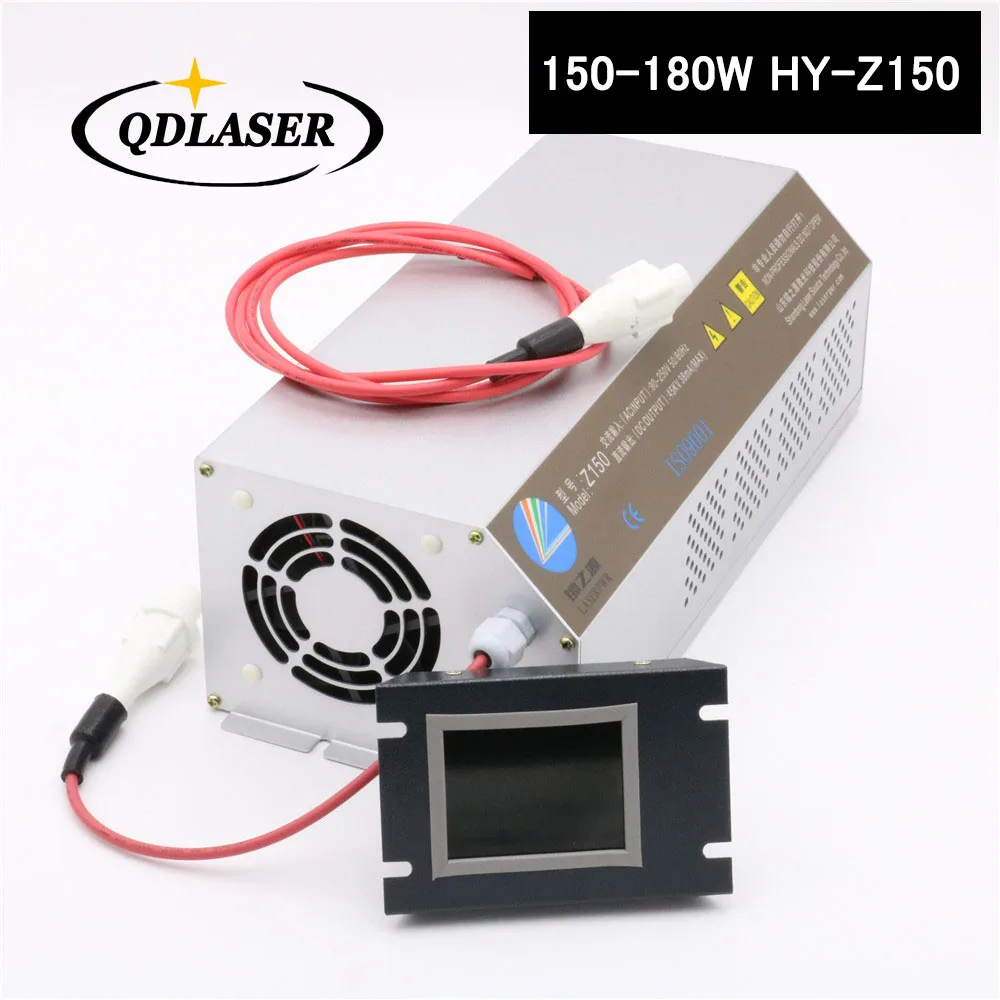

150-180W CO2 Laser Power Supply Monitor AC90-250V EFR Tube for CO2 Laser Engraving Cutting Machine HY-Z150
1.Main Features：
1. Unique design with several patents
2. High intelligence: built-in control, can communicate with motion controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.
3. Make the maintenance much easier: User can judge the problem by himself.
4. Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.
5. Universal: with PFC function, AC90-250V input voltage range, globally universal.
6. Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.
7. More safety: with high voltage discharge function, no residual voltage when turning off, safer for user.
8. Excellent cover with patent design: Good appearance, better heat dissipation.
9. Improved current control mode, more stable laser, better compatibility.
2.Parameters：
| Item | Data | Z80 | Z100 | Z150 | ||||
| Input | Input voltage | AC90-250V | ||||||
| AC frequency | 47---440Hz | |||||||
| Max input power | 550W | 650W | 750W | |||||
| Max input current (90V input) | 6A | 7.5A | 9.5A | |||||
| Output | Max output voltage | 40KV | 45KV | 55KV | ||||
| Max output current | 28mA | 32mA | 38mA | |||||
| Efficiency | ≥90%(full load) | |||||||
| MTBF(mean time between failure) | ≥10000 hours | |||||||
| Response speed | ≤1mS (the time from the signal is given to output current reaches 90% of set current) | |||||||
| Withstand voltage | Input-output, input-shell:AC1500V 10mA 60s: | |||||||
| Working environment | Temperature(-10~40)°C , relative humidity:≤90% | |||||||
| Cooling | Force Air cooling | |||||||
| Network cable | Length | 1.5M/3M | 1.5M/3M | 1.5M/3M | ||||
| Dimension | L*W*H=(mm) | 235*144*104 | 278*144*104 | 330*144*104 | ||||
| Weight | Net weight(KG) | 2.45 | 2.75 | 3.5 | ||||
| Color | Silver gray | |||||||
