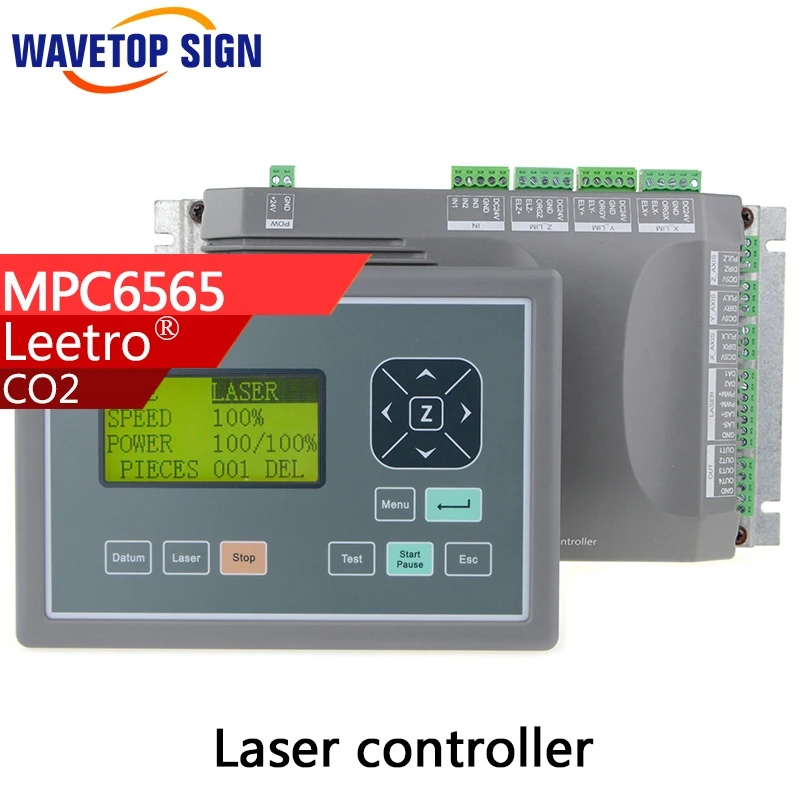

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Hot Deals mpc6565 Laser machine control card MPC 6565 control card+LCD+usb cable +dongle. Get Discount Now! Only US $472.29/piece at this time. Hurry buy Now before back to normal price! Normal price US $519.00 or you can Check price now. Dont waste your time. Buy Now only in wavetopsign Store Trusted Seller Store!
● Both servo and stepper motor supported
● Break-point resume
● Pulse frequency up to 2MHz
● Compatible for stepper motors or digital servo motors
● RS232 ModBus Protocol
● Data transferred by USB cable or USB flash drive
● 1-CH laser power on/off control output
● 1-CH laser PWM control output
● Up to 2-CH independent power analog output
● PWM preheat control
● Uncapping protection
● Flying-optics compensation
Motion Control
High precision interpolation, circular interpolation resolution under 0.5 pulse
For CO2 tube
Laser ON, TTL compatible
Laser power control: PWM, frequency or analog voltage (user select)
For RF tube
Laser ON, TTL compatible
Q pulse signal, programmable duty and frequency
Software Environment
Windows 2000/XP/VISTA/7/8/8.1/10 (32 and 64-bit) Windows
Bundled with application software, LaserCut5.3 or 6.0
Working Environment
Temperature: 0-60℃
Humidity: 5-90%, non condensing
Power
24VDC, 2A
| Order Code | Model | Description | Qty(pc) | Approxi. Size (mm) | Net Weight(Kg) | Type |
| 1011.00.126 | MPC6525A | Motion Control Board | 1 | 200*125*40 | 0.49 | Standard |
| 1012.00.713 | PAD03-E | Operation Panel,English | 1 | 150*100*27 | 0.21 | Standard |
| 1012.00.900 | C4-PAD03-1.5M | Cable connects MPC6565 and PAD03-E | 1 | Length 1500 | 0.13 | Standard |
| 1012.01.000 | USB-AB-3M | USB Cable | 1 | Length 3000 | 0.13 | Standard |
| 1012.01.400 | Dongle-WHITE | Software Key for LaserCut Software | 1 | 55*18*8 | 0.01 | Standard |
| 1012.00.804 | PAD04A-E | upgraded from PAD03-E, English | 1 | 170*120*35 | 0.33 | Optional |
| 1012.01.005 | COM-W4-2.5M | Cable connects MPC6565 and PAD04A-E | 1 | Length 2500 | 0.29 | Optional |
