Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Stock Offers Ruida RD RDLC320-A RDL320 Co2 Laser DSP Controller for Laser Engraving and Cutting Machine RD320 320. Get Discount Now! Only US $284.82/piece at this time. Hurry buy Now before back to normal price! Normal price US $303.00 or you can Check price now. Dont waste your time. Buy Now only in wavetopsign Store Trusted Seller Store!
Quality products guarantee your life more comfortable when utilizing it. If you are interested to get it, you can straight speak to the sales to obtain more details regarding this high quality item.

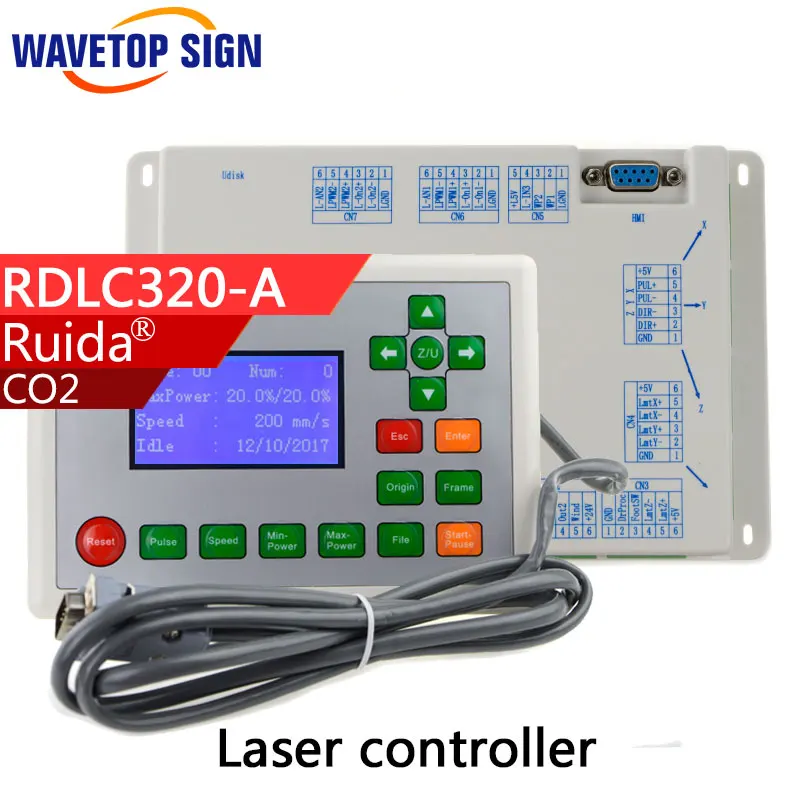

Rui laser cutting card RDLC320-A
RDLC320-A laser engraving / cutting card is Core Technology specifically for laser engraving / cutting applications and the development of a controller. Hardware platform is based on high-performance 32 -bit floating point DSP + FPGA architecture processor , you can complete large-scale and complex motion control algorithms achieve more motion axes continuous path control , position control , and complete control of the energy to follow , so that laser energy is uniform at any velocity point . Large-scale logic gate array (FPGA) communication protocol can be complex and flexible IO expansion . USB communication transmission quick , simple operation
Technical parameters
Digital laser control signals
( 1 ) differential output , TTL level , 20mA drive capability
(2) PWM Adjustable Frequency 2.5K ~ 100K
(3) PWM duty cycle 2 % to 98 % adjustable
Analog laser control signal 0 ~ 5V regulator automatically follow
Motor control signal differential output , TTL level , 20mA drive capability
Maximum motor control pulse frequency 500KHZ
Maximum transfer rate USB 12M, the longest distance 5 m
Straight line / circle / B -spline interpolation accuracy + / -0.5 pulse
4-way Universal opto-isolated OC gate output , maximum 600mA drive capability
4-way Universal opto-isolated inputs , TTL level
Function Description:
RDLC320-A laser engraving / cutting control card advantages:
The board as a whole has a better anti-hypertension, anti-static interference ability ;
Single 24V power supply ( 36V power supply can also be used , but not recommended ) , you can save the cost of the machine manufacturers ;
Multi-channel universal high current IO, functions can be easily extended ;
Supports all brands, all capacity U disk, and copy speed is 3 times of the previous version of the system ;
Onboard 256M large capacity non-volatile memory , no longer has the file size bottlenecks ;
System can be self- bad , and can format the internal memory , fault tolerance ;
Two independent digital / analog power interface, software can be adjusted separately to facilitate dual laser head control ;
Available online to upgrade the motherboard program to facilitate maintenance and customer functions manufacturers custom ;
Online upgrade the boot screen ( Customers can customize the boot screen , and then go through the software download ) ;
System comes time systems ( can show date , more stable and reliable hardware encryption algorithm ) ;
Support customer processing time preview ( 100% accurate preview , preview time and the actual processing time is accurate to the millisecond ) ;
Support machine backlash compensation function ;
Increases the Z -axis function ;
Size:
Master Card Size : 170mm x120mm;
System Power Supply : +24 V, greater than 3A;
System Operating temperature: -20 degrees to 70 degrees
Product Selection :
RDLC320G
3: The third generation of products
2 : Controller version number
0: Reserved
G: General Release
Applications
RDLC320-A can be widely used in laser cutting, laser engraving, laser welding and other fields.
