Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Stock Flash Deal laser machine control card RDL C320 A/ control card RDL c320 without lcd display. Get Discount Now! Only US $258.50/piece at this time. Hurry buy Now before back to normal price! Normal price US $275.00 or you can Check price now. Dont waste your time. Buy Now only in wavetopsign Store Trusted Seller Store!
The parameter setting password:
rd8888

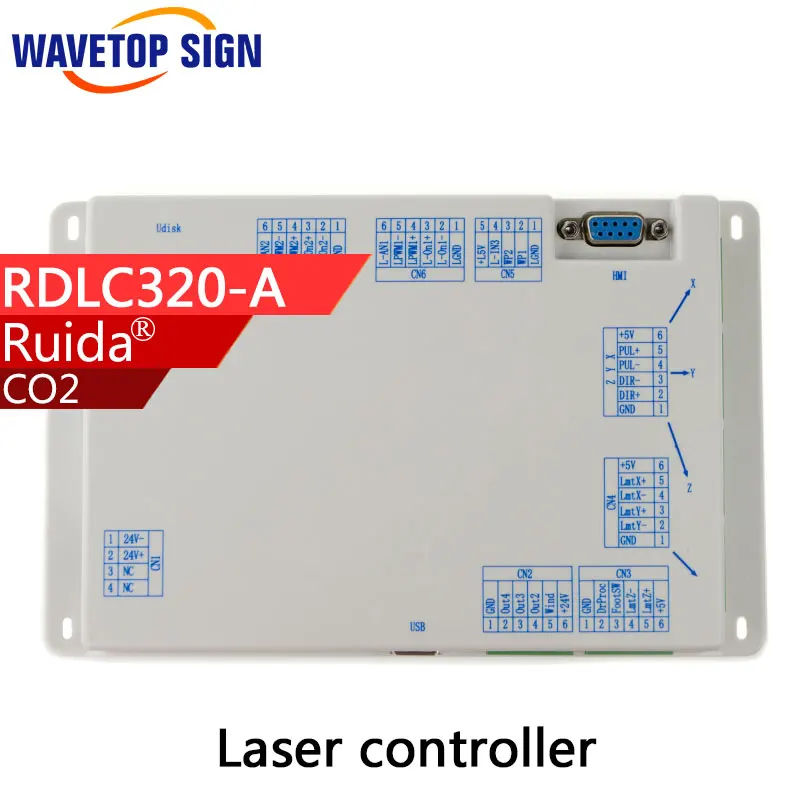

RDL C320 / RDL C320A is a controller developed by RuiDa Technology especially for laser engraving/cutting, based on floating 32-bit DSP+FPGA architecture with high performance. It can finish large-scale complex motion control algorithm to achieve the continuous path control and position control of multi-axis movement, and energy tracking control, keeping the laser energy balance at any speed point. Large-scale logical gate array FPGA can complete the complex communication protocol and flexible IO extension. Fast communicate transmission and easy to operate.
Technical Parameters:
1.Digital laser control signals
(1)Differential output, TTL level, 20 mA,
drive capability
(2) PWM frequency 2.5K-50K for adjustable
(3) PWM duty ratio is 2% ~ 98%, adjustable
(4) PWM value is up to 4.5 V
2.Analog laser control signal:0 ~ 5V tracing adjustable automatically
3.Motor control signal:differential output, TTL level, drive capability 20 mA
4.Motor control pulse frequency:Max. 400 KHZ
5.USB:Max. transmission rate is 12M bps; the longest distance is 5 meters.
6.Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse
7.Output:4-channel, photoelectric isolated OC gate output; max. drive capability is 300mA
8.Input:4-channel, photoelectric isolated input, TTL level
Functions:
-
One-way 24V power supply(compatible with 36V, but not recommended)
-
Support all brands and capacities of U disks, quick and strong compatible copy ability
-
256M large-capacity file nonvolatile storage onboard, no bottlenecks limit for file size
-
Capable of self-checking defective track, can format memory, good in fault tolerance
-
Two-way independent digital/analog interface, software can be adjusted respectively, convenient for double laser heads control; Dedicated RF laser control interface
-
Soft/hard limit coordinates protection for optional
-
Time system on board ( year-month-day, more reliable hardware encryption algorithm)
-
Online update mainboard program, convenient for maintenance and functions customization.
-
Auto-feeding, up and down, rotating engraving,left-right pushing plate, etc.
Support feeding line by line, slope engraving function
-
Support Power-off restart for engraving, work time preview (high accuracy to millisecond, the preview time is exact to the actual working time, the other vendor cannot realize)
-
Support machines backlash compensation function
-
Increase Z axes linkage function
-
System Power-on resetting or not resetting for optional
-
Support multiple positioning points logic
-
All manufacturer/user parameters can be backup and restored
