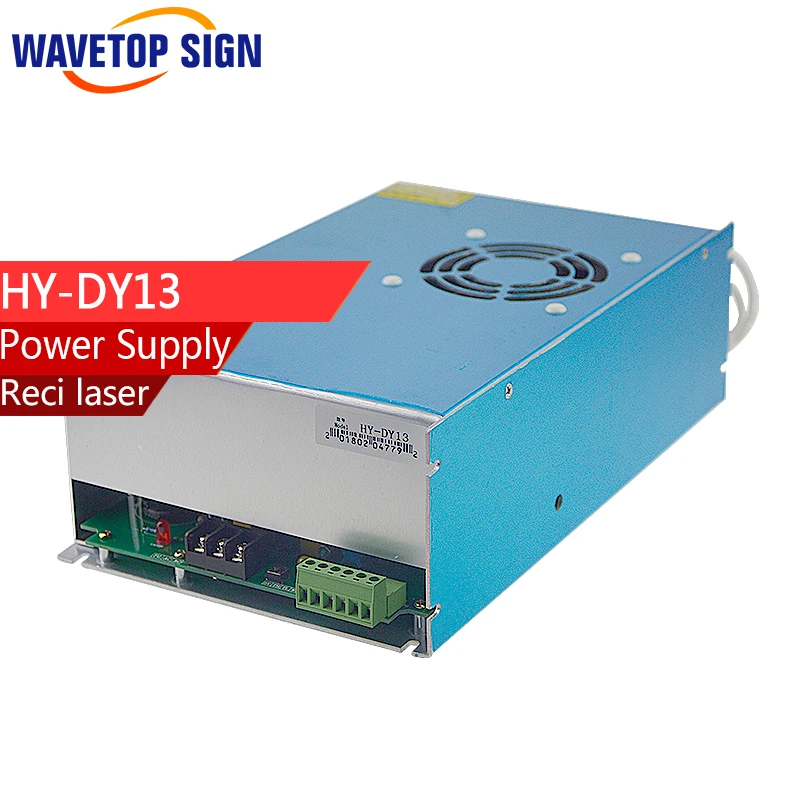

Model: HY-DY13 Description： Model: HY-DY13 for W2/Z2/S2 and W4/Z4/S4 Reci Co2 Laser Tubes
Alias: Co2 Laser Generator, Co2 Laser Source,Co2 Laser Device,High Voltage Power Supply
Application:
HY-DY13 Laser Power Supply is used for 80W,100W Cutting and Engraving Acrylic, Fabric, Double Color Sheet and Rubber,ect.
specification
AC frequency: 47 - 440HZ
Max Input power: 550W
Max Input current: 8A
Max output voltage: DC40KV
Max output current: DC28Ma
Efficiency: >/=90%(Full load)
MTBF: >/=10000 Hours
Response speed: ≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)
Withstand Voltage: Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
Environment: Operating temperature: (-10-40)degree Celsius,Relative humidity: ≤90%
Cooling: Forced air cooling (fan cooling)
Operating instructions
1.Laser Tube connection: (Refer to Power supply and laser Devices connection Diagram) High voltage terminal of HY-DY13 power supply should be connected to the positive pole of CO2 laser device. Current circuit of the power supply shall be connected to negative pole (laser output terminal) of laser device, through an ampere meter or directly.
2.Connection of control signal( Refer to Power supply and control boards connection Diagram) The control signal shall be reliably connected to control terminal of the power supply HY-DY13,after connecting the DAC output signal and TTL signal of external computer with the power supply, the laser device shall work as expected. If the laser lamp can not work properly, should check the control signal whether correct or not(include check the voltage specification and logic),if use PWM control as power control,make sure f≥20KHz,Amplitude (peak value) ≤5V,Check and protection switch WP connection is correct at same time.
3.Voltage of power input: HY-DY13s power input of the power supply shall be 220VAC/50Hz. If 110VAC required please specify when placing order.
4. Others: A group of protection switches are also reserved for detection of water switch, fan switch,open-enclosure protection and so on.
