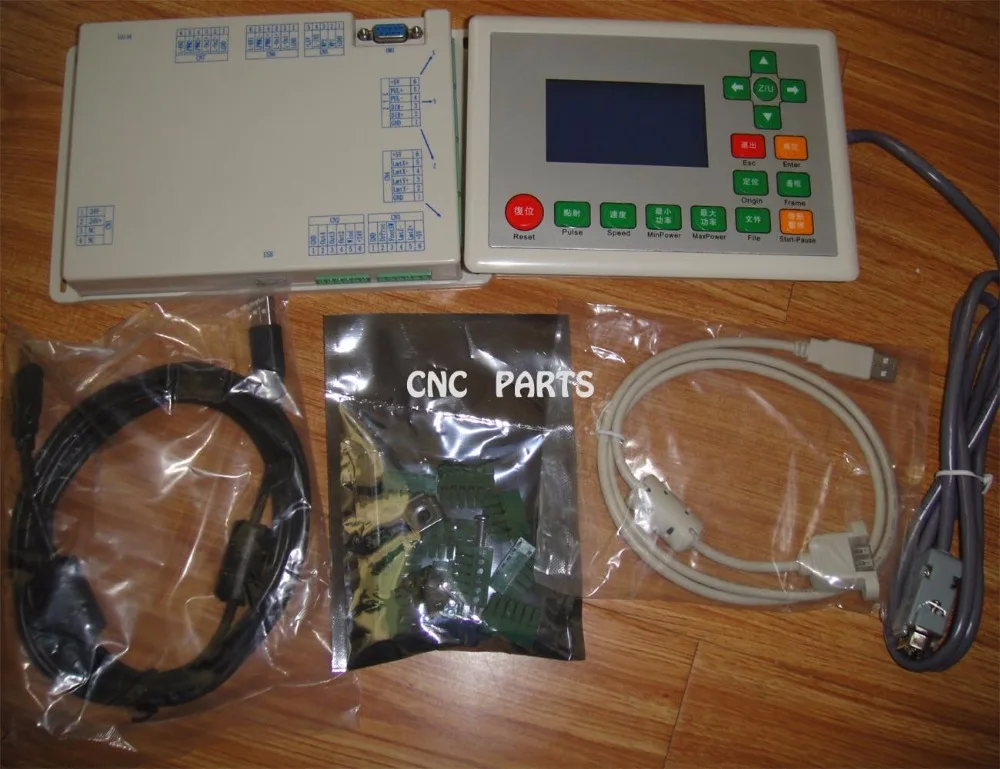

Cool Special ruida 320 laser controller system for laser engraving and cutting machine RDC320A

Cool Special ruida 320 laser controller system for laser engraving and cutting machine RDC320A lamachine Rating: 5 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Cool Special ruida 320 laser controller system for laser engraving and cutting machine RDC320A. Get Discount Now! Only US $332.50/piece at this time. Hurry buy Now before back to normal price! Normal price US $350.00 or you can Check price now. Dont waste your time. Buy Now only in nashgitr Official Store Trusted Seller Store!

These days this Flash Deal Cool Special ruida 320 laser controller system for laser engraving and cutting machine RDC320A goods is truly affordable for almost everybody and also its a very good buy for the loan.

3-axis standalone laser cutting & engraving controller RDLC320-A

Technical Parameters:

1.Digital laser control signals

(1)Differential output, TTL level, 20 mA,
drive capability
(2) PWM frequency 2.5K-50K for adjustable
(3) PWM duty ratio is 2% ~ 98%, adjustable
(4) PWM value is up to 4.5 V

2.Analog laser control signal:0 ~ 5V tracing adjustable automatically

3.Motor control signal:differential output, TTL level, drive capability 20 mA

4.Motor control pulse frequency:Max. 400 KHZ

5.USB:Max. transmission rate is 12M bps; the longest distance is 5 meters.

6.Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse

7.Output:4-channel, photoelectric isolated OC gate output; max. drive capability is 300mA

8.Input:4-channel, photoelectric isolated input, TTL level

Product Introduction:

RDLCXXX-X is a controller developed by RuiDa Technology especially for laser engraving/cutting, based on floating 32-bit DSP+FPGA architecture with high performance. It can finish large-scale complex motion control algorithm to achieve the continuous path control and position control of multi-axis movement, and energy tracking control, keeping the laser energy balance at any speed point. Large-scale logical gate array FPGA can complete the complex communication protocol and flexible IO extension. Fast communicate transmission and easy to operate.

Functions:

· One-way 24V power supply(compatible with 36V, but not recommended)

· Support all brands and capacities of U disks, quick and strong compatible copy ability

· 256M large-capacity file nonvolatile storage onboard, no bottlenecks limit for file size

· Capable of self-checking defective track, can format memory, good in fault tolerance

· Two-way independent digital/analog interface, software can be adjusted respectively, convenient for double laser heads control; Dedicated RF laser control interface

· Soft/hard limit coordinates protection for optional

· Time system on board ( year-month-day, more reliable hardware encryption algorithm)

· Online update mainboard program, convenient for maintenance and functions customization.

· Auto-feeding, up and down, rotating engraving,left-right pushing plate, etc.

Support feeding line by line, slope engraving function

· Support Power-off restart for engraving, work time preview (high accuracy to millisecond, the preview time is exact to the actual working time, the other vendor cannot realize)

· Support machines backlash compensation function

· Increase Z axes linkage function

· System Power-on resetting or not resetting for optional

· Support multiple positioning points logic

· All manufacturer/user parameters can be backup and restored

Product model:

RDLC320G

3: The third generation

2: Controller version

0: reserved

G: standard

Working Power: +24V, >2A

Working temperature:0~50^o, humidity is not greater than70%.
