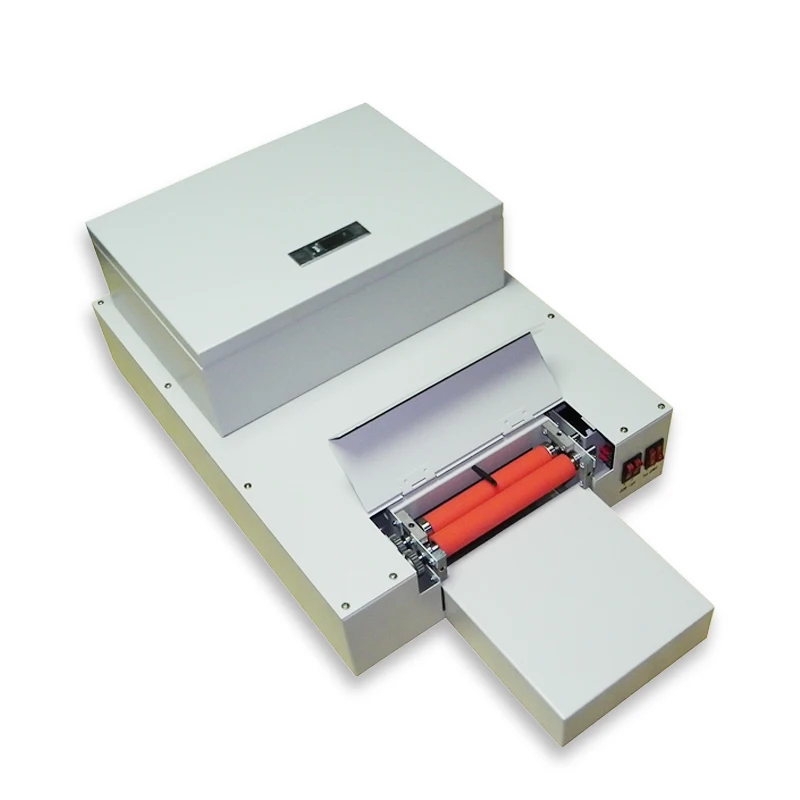

Big Stock Deals 2017 Advanced CD UV coating coater DVD disc Lamination Machine with top quality Maquina de Laminacion de DVD

Big Stock Deals 2017 Advanced CD UV coating coater DVD disc Lamination Machine with top quality Maquina de Laminacion de DVD lamachine Rating: 4.5 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Stock Deals 2017 Advanced CD UV coating coater DVD disc Lamination Machine with top quality Maquina de Laminacion de DVD. Get Discount Now! Only US $619.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $688.00 or you can Check price now. Dont waste your time. Buy Now only in All-PRINTER PARTS Store Trusted Seller Store!

Low-cost cost and totally free shipping. Allow's get before prices increase.

No question, this is an actual goods that supplies numerous benefits along with successful for you. Simply as you will certainly get a fortune, this product has the ability to provide an automobile that needs to be extremely intriguing for you. In picking this item, you can do various factors to consider that exist in the brochure. The product magazine you obtain is certainly offer a recommendation for those of you who desire to locate the item you want.

1.Technical Parameters

Disc working width	140mm
Rated voltage	220V /110V
Frequency	50HZ-60HZ
Power	450W
Machine size	550*400*220mm (length* width* height)
Carton size	640*480*300mm (length* width* height)
working temperature	15-35°C
Coating speed	4m/min, 10-15 seconds/piece disc
Liquid consumption	8ml/sqm 150-200 sqm /kg
Lamp Lifetime	800hours

2. Coating MaterialCD dedicated Coating machine for disc surface coating after printing. 3. Usage1) Take out machine and put it on the flat table, install the 4 machine angle (black color) into every angle (small hole) at the bottom of machine and disc tray separately.2) Pour glossy oil into Liquid storage tank (liquid depth can not be more than 1.5cm). And put tank under rubber roller(red color), then put Pipette into tank.3) Plug in (connected machine with power line and socket). Open three switch (right side is main switch, middle is UV lamp switch, left side is circulated liquid switch),
then machine stars working. UV lamp needs warming, let machine tick, over around 3minutes in advance. After that, you can start coating CD/DVD after oil poured over the entire rubber roller.4) For 1st time using, if you still can not find glossy oil on the rubber roller after machine opening3-5minutes, it means there is some air in the circulated pump (the exit of liquid) so that oil can not pour out. At this time, you can use syringe to deflate the airoutwards from the exit of pipette.5) Put one disc on the tray(words upward), and push disc into the bottom of rubber roller slowly, the machine will coat automatically by itself, the disc will be sent out from the back of the machine once finished6) If you feel coated oil is too thin or too thick, you can use hexagon wrench to adjust the gap of two rubber roller. Firstly open the cover which is above rollers, you can see clearly there are 2 small aluminum on both side in the front of roller, and there are 2 small holes. Pls put hexagon wrench into the hole, make it rotated clockwise if you need coated oil thin, the gap between rollers will be narrow. If you need coated oil thick, you can make it rotated counter clockwise, the gap will be wider.7) If not to use the machine for long time, you’d better clear rubber rollers before you store it. Pull the alcohol into the storage tank to replace the glossy oil, and keep the machine working for a while. Or open the cap of the rubber roller, pull the alcohol between the 2 rollers, keep the rollers work for a while, or use a piece of cotton with alcohol clean the rubber roller.4. Note1) If the machine doesn’t work when power on, please check whether the fuse is intact, the fuse is under the electric plug socket. 2) The machine must be placed on a horizontal table.
3) Do not let the sunlight direct to the machine, try to put the machine at a clean and ventilation place.
4) After turn off the light, please do not turn on the light immediately, you must let the UV lamp cooled then turn on. It means after about 2 minutes, you can turn on the light and continue to work, otherwise it will affect the lamp life, or damage the lamp directly.
5) Normally the UV lamp use life is about 800-1000hours, if you find the lamp can not on and the coat surface is sticky, it means that the lamp is near the end of life, you need change the lamp on time.5.Advantage1) Coating the glossy oil on the CD disc.
2) To making the CD surface more glossy and protect the CD from soiled.
3) To preventing the design on the CD from water and moisture.
4) If don’t coating the glossy oil,the design on the CD will be halo color and fade after damp for printed for a long time.6.pictuere shows

Better quality,Better service & the best shopping here! ! !

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
