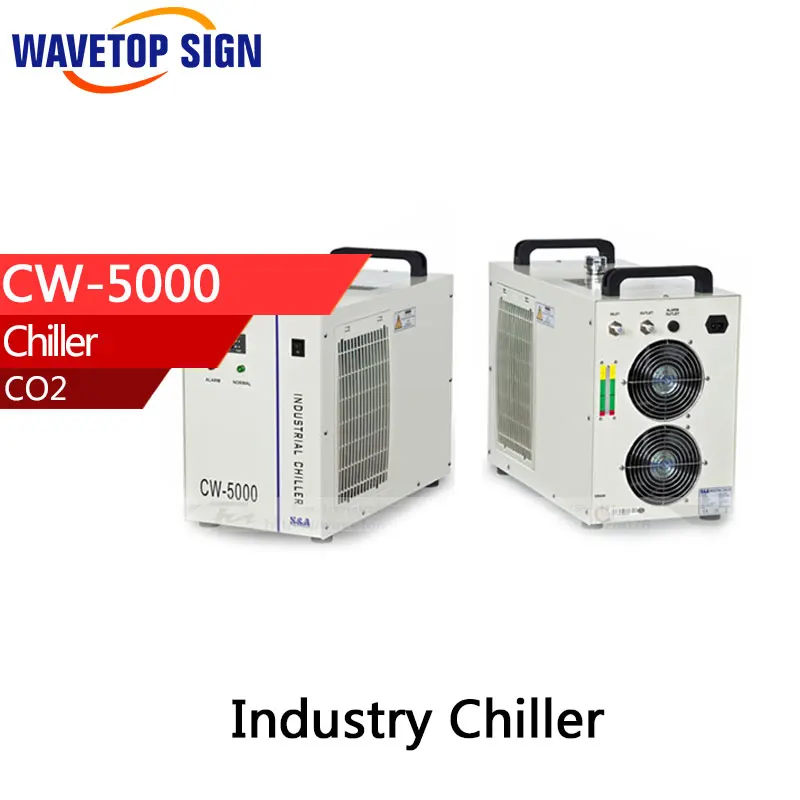

S&A CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted. There is 1 water outlet and an inlet, applicable to cool single laser glass tube.

Features

1. 800W cooling capacity; use environmental refrigerant;.

2. Compact size, long working life and simple operation;

3. ±0.3℃ precisely temperature control;

4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

6. Multiple power specifications; CE,RoHS and REACH approval;

7. Optional heater and water filter.

Specification

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch

to appropriate operating temperature.

CW-5000AG: applied to cool a single 80W CO2 laser tube (emitting rate higher than 60%);

CW-5000AH: applied to cool a single 5KW spindle or welding equipment;

CW-5000AI : applied to cool a single 5W-10W solid-state laser.

Model	CW-5000AG	CW-5000BG	CW-5000DG	CW-5000AH	CW-5000BH	CW-5000DH	CW-5000AI	CW-5000BI	CW-5000DI
Voltage	220V	220V	110V	220V	220V	110V	220V	220V	110V
Frequency	50Hz	60Hz	60Hz	50Hz	60Hz	60Hz	50Hz	60Hz	60Hz
Current	0.15~2.3A		0.3~4A	0.25~2.4A		0.45~4.15A	0.7~2.75A		1~4.7A
Compressor power	0.295KW	0.38KW	0.305KW	0.295KW	0.38KW	0.305KW	0.295KW	0.38KW	0.305KW
	0.40HP	0.52HP	0.41HP	0.40HP	0.52HP	0.41HP	0.40HP	0.52HP	0.41HP
Refrigeration capacity	2361Btu/h	2999Btu/h	2866Btu/h	2361Btu/h	2999Btu/h	2866Btu/h	2361Btu/h	2999Btu/h	2866Btu/h
	0.692KW	0.879KW	0.84KW	0.692KW	0.879KW	0.84KW	0.692KW	0.879KW	0.84KW
	595Kcal/h	756Kcal/h	722Kcal/h	595Kcal/h	756Kcal/h	722Kcal/h	595Kcal/h	756Kcal/h	722Kcal/h
Refrigerant	R-134a
Refrigerant charge	300g	320g	280g	300g	320g	280g	300g	320g	280g
Precision	±0.3℃
Reducer	Capillary
Protection	Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power	0.03KW			0.051KW			0.1KW
Tank capacity	6L
Inlet and outlet	External Φ10mm barbed connector						Φ10mm speedy connector
Max. lift	10 M			12M			25M
Max. flow	10 L/min			13L/min			16 L/min
N.W	24 Kgs
G.W	27 Kgs
Dimension	58 x 29 x 47 cm (L x W x H)
Package dimension	70 x 43 x 58 cm (L x W x H)
